IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

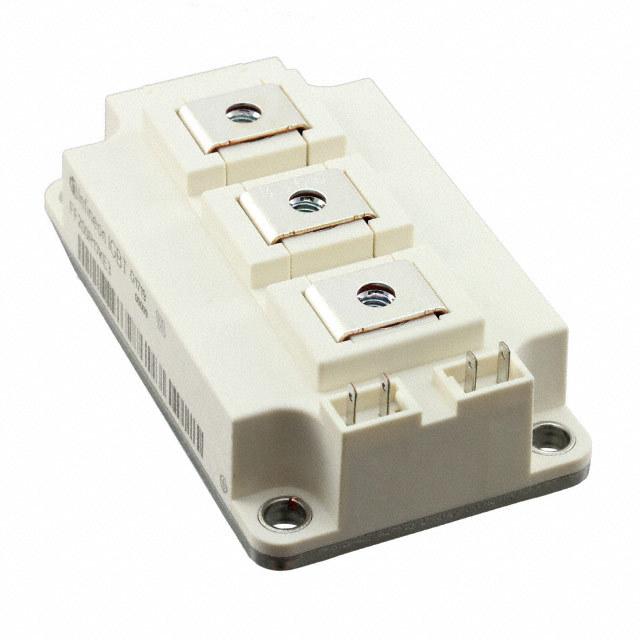

FF400R06KE3HOSA1
|
Infineon Technologies | IGBT MODULE 600V 400A | 30 | $120.75 | |
FZ400R12KE4HOSA1
|
Infineon Technologies | IGBT MODULE 1200V 400A | 28 | $100.81 | |

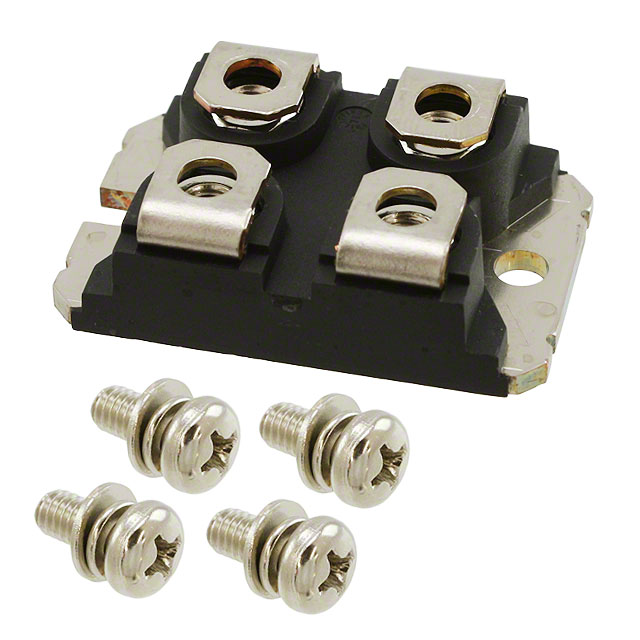

VS-GA250SA60S
|
Vishay / Semiconductor - Diodes Division | IGBT 600V 400A SOT227 | 144 | $78.75 | |
VS-GT180DA120U
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V SOT-227 | 103 | $44.89 | |

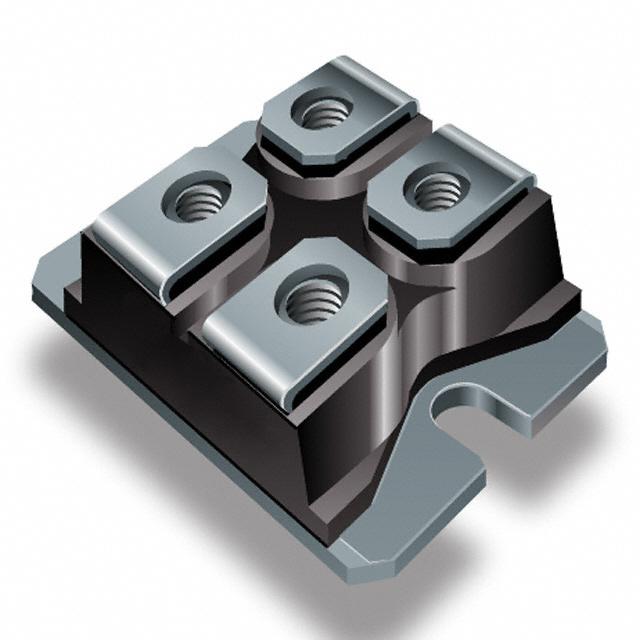

APT75GP120JDQ3
|
Microsemi Corporation | IGBT 1200V 128A 543W SOT227 | 363 | $43.18 | |

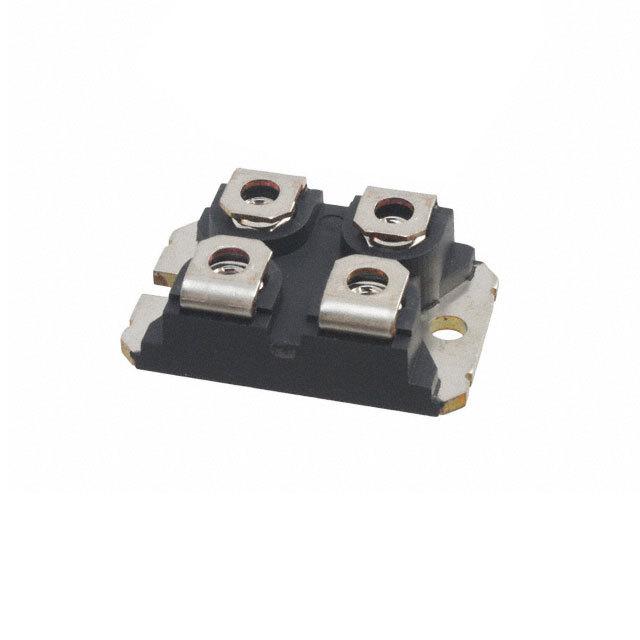

IXYN100N120C3H1
|
IXYS | IGBT XPT 1200V 134A SOT-227B | 133 | $39.34 | |
|
IXXN110N65B4H1
|
IXYS | IGBT 650V 215A 750W SOT227B | 310 | $23.06 | |
|
IXXN110N65C4H1
|
IXYS | IGBT 650V 210A 750W SOT227B | 449 | $23.06 | |
VS-ETY020P120F
|
Vishay Semiconductors | Rectifiers SW Mod - EMIPAK 2B | 0 | $144.97 | |
|
VS-20MT050XC
|
Vishay Semiconductors | Schottky Diodes & Rectifiers Output & SW Modules - MTP SWITCH-e3 | 0 | $113.52 |
