IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
DDB6U180N16RRPB37BPSA1
|
Infineon Technologies | BRIDGE RECT 3P 1.6KV 50A ECONO2 | 0 | $113.31 | |
|
DDB6U104N16RRBOSA1
|
Infineon Technologies | DIODE MODULE GP 1600V 25A | 0 | $67.09 | |
|
DD1200S33K2CNOSA1
|
Infineon Technologies | DIODE MOD 3300VA-IHV130-3-1 | 0 | $0.00 | |
|
DDB6U104N18RRBOSA1
|
Infineon Technologies | DIODE MODULE GP 1800V | 0 | $0.00 | |
|
TDB6HK180N16RRB48BPSA1
|
Infineon Technologies | SCR MODULE VDRM 1600V 70A | 0 | $127.32 | |
|
TDB6HK180N16RRBOSA1
|
Infineon Technologies | SCR MODULE VDRM 1600V 70A | 0 | $112.67 | |

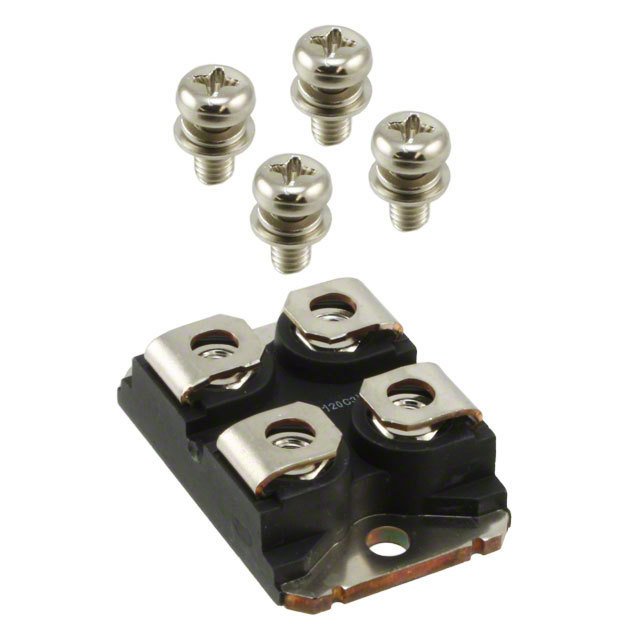

IXYN100N65C3H1
|
IXYS | IGBT XPT 650V 166A SOT-227B | 1777 | $24.32 | |

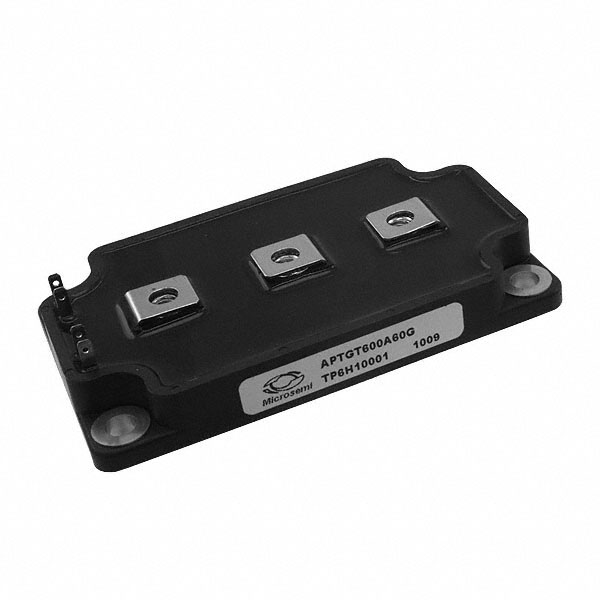

APTGT600A60G
|
Microsemi Corporation | POWER MODULE IGBT 600V 600A SP6 | 75 | $208.73 | |

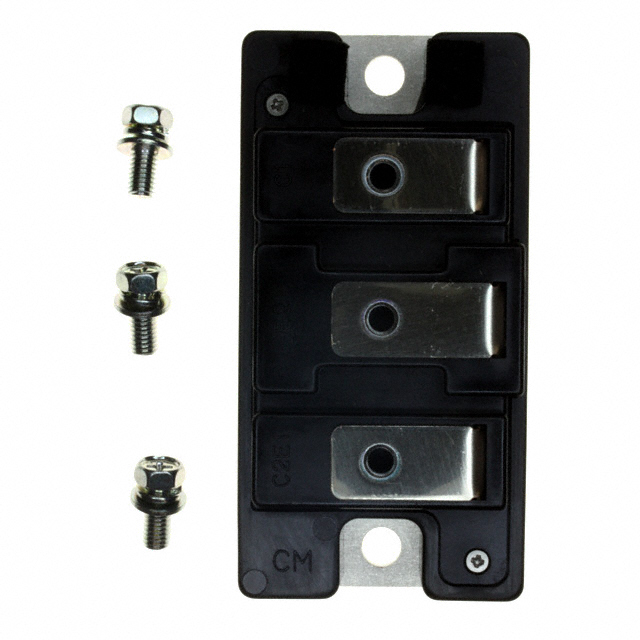

CM100DU-24NFH
|
Powerex, Inc. | IGBT MOD DUAL 1200V 100A NFH SER | 133 | $96.48 | |

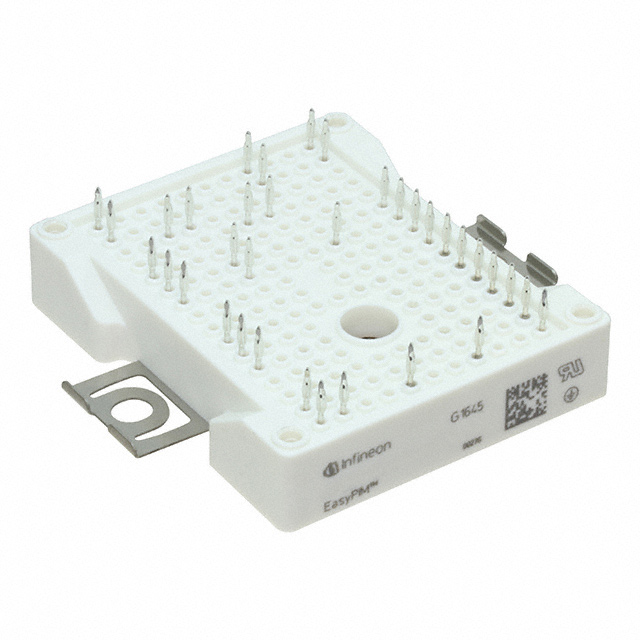

FP35R12W2T4PB11BPSA1
|
Infineon Technologies | MOD IGBT LOW PWR EASY2B-2 | 36 | $53.36 |
