IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

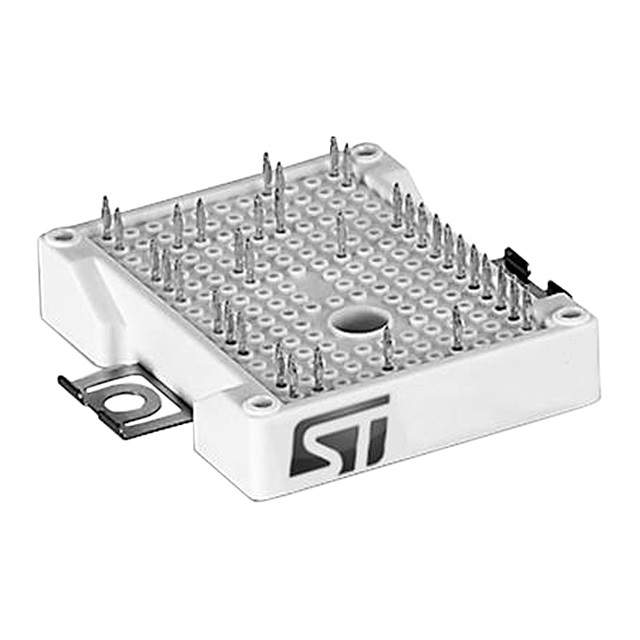

A2C25S12M3
|
STMicroelectronics | IGBT TRENCH 1200V 25A ACEPACK2 | 5 | $53.19 | |
FS30R06W1E3B11BOMA1
|
Infineon Technologies | MOD IGBT LOW PWR EASY1B-2 | 0 | $26.85 | |
|
MIXA150R1200VA
|
IXYS | IGBT MODULE 1200V 150A HEX | 0 | $26.36 | |
|
MIXA150Q1200VA
|
IXYS | IGBT MODULE 1200V 150A HEX | 0 | $26.36 | |
|
FP06R12W1T4B3BOMA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 6A | 0 | $30.89 | |
|
FP20R06W1E3B11BOMA1
|
Infineon Technologies | IGBT MODULE VCES 600V 20A | 0 | $30.61 | |
VS-CPV362M4KPBF
|
Vishay / Semiconductor - Diodes Division | MOD IGBT 3PHASE INV 600V SIP | 0 | $30.36 | |
|
FF75R12YT3BOMA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 75A | 0 | $33.81 | |
|
FP30R06W1E3B11BOMA1
|
Infineon Technologies | IGBT MODULE VCES 600V 30A | 0 | $33.77 | |
|
FP30R06W1E3BOMA1
|
Infineon Technologies | IGBT MODULE VCES 600V 30A | 0 | $33.77 |
