IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

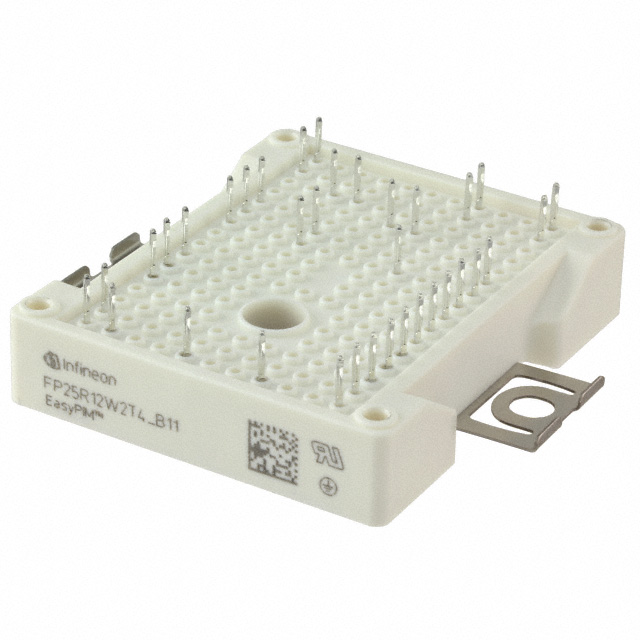

FP25R12W2T4B11BOMA1
|
Infineon Technologies | IGBT MODULE 1200V 25A | 21 | $49.49 | |
VS-GA200SA60UP
|
Vishay / Semiconductor - Diodes Division | IGBT 600V 200A 500W SOT-227 | 49 | $38.14 | |

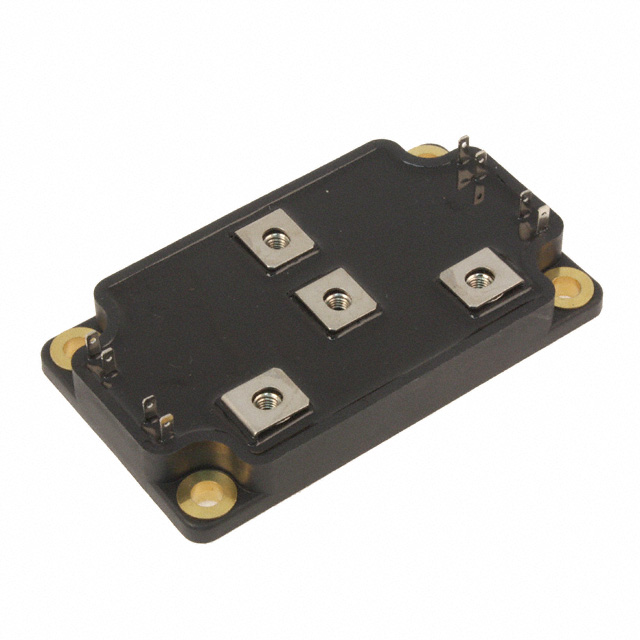

APTGT200TL60G
|
Microsemi Corporation | POWER MODULE IGBT 600V 200A SP6 | 2 | $173.91 | |
FP75R12KE3BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 75A | 16 | $147.07 | |

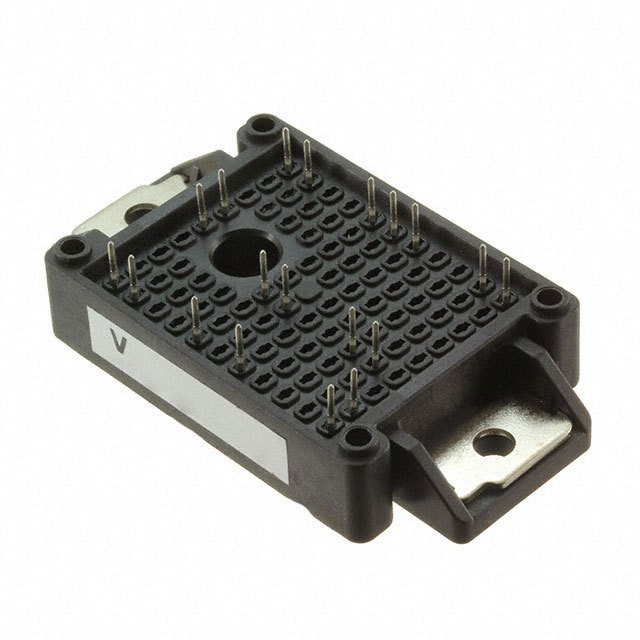

VS-ENQ030L120S
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 61A 216W EMIPAK-1B | 2 | $117.94 | |
MG1275S-BA1MM
|
Littelfuse Inc. | IGBT 1200V 105A 630W PKG S | 43 | $65.28 | |
|
MG0675S-BN4MM
|
Littelfuse Inc. | IGBT 600V 100A 250W PKG S | 52 | $64.65 | |
APTGFQ25H120T2G
|
Microsemi Corporation | IGBT 1200V 40A 227W MODULE | 20 | $59.44 | |
A2P75S12M3-F
|
STMicroelectronics | IGBT TRENCH 1200V 75A ACEPACK2 | 0 | $64.45 | |
|
A2P75S12M3
|
STMicroelectronics | IGBT TRENCH 1200V 75A ACEPACK2 | 0 | $63.58 |
