IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APT85GR120J
|
Microsemi Corporation | IGBT MODULE 1200V 116A ISOTOP | 116 | $34.29 | |
FS200R12KT4RBOSA1
|
Infineon Technologies | IGBT MODULE 1200V 200A | 32 | $209.10 | |
FS150R12KE3BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 150A | 28 | $187.46 | |

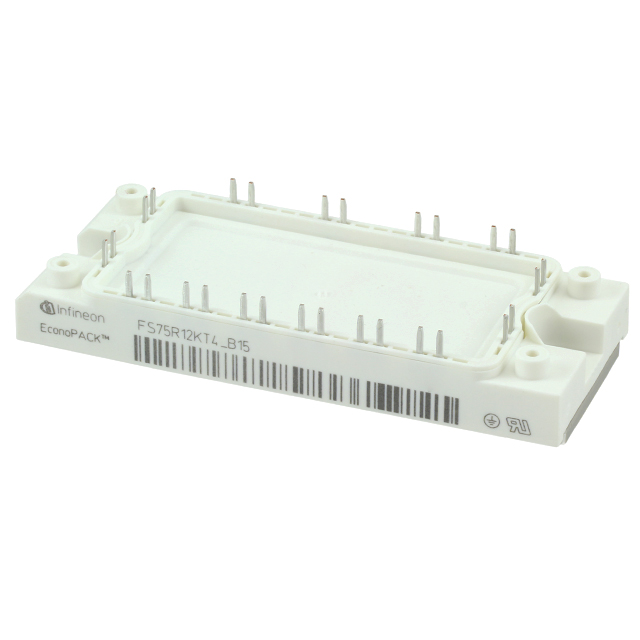

FS75R12KT4B15BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 75A | 77 | $104.61 | |
VS-40MT120UHAPBF
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 80A 463W MTP | 43 | $103.76 | |
FP50R12KT4B11BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 50A | 29 | $101.69 | |
FF200R06KE3HOSA1
|
Infineon Technologies | IGBT MODULE 600V 200A | 47 | $87.89 | |
VS-GB90DA120U
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 149A 862W SOT-227 | 278 | $87.59 | |
DDB6U134N16RRBOSA1
|
Infineon Technologies | IGBT MODULE 1600V 134A | 79 | $78.29 | |
|
APT150GN120JDQ4
|
Microsemi Corporation | IGBT 1200V 215A 625W SOT227 | 162 | $54.22 |
