IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
GB100XCP12-227
|
GeneSiC Semiconductor | IGBT 1200V 100A SOT-227 | 27 | $223.62 | |
MG12450WB-BN2MM
|
Littelfuse Inc. | IGBT 1200V 600A 1950W PKG WB | 54 | $201.35 | |

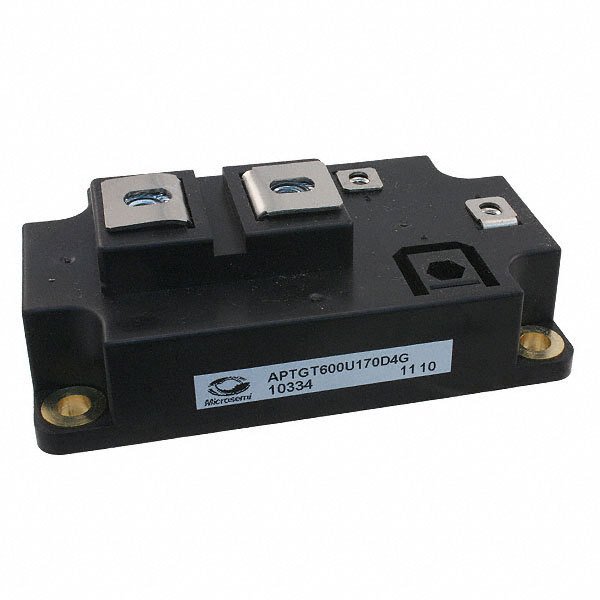

APTGT600U170D4G
|
Microsemi Corporation | IGBT TRENCH SGL SWITCH 1700V D4 | 85 | $176.15 | |
MG12300D-BN2MM
|
Littelfuse Inc. | IGBT MODULE PACKAGE D1200V 300A | 55 | $170.40 | |
|
MG12400D-BN2MM
|
Littelfuse Inc. | IGBT 1200V 580A 1925W PKG D | 33 | $167.62 | |
|
MG06600WB-BN4MM
|
Littelfuse Inc. | IGBT 600V 700A 1500W PKG WB | 60 | $150.68 | |
APTGT600U120D4G
|
Microsemi Corporation | IGBT 1200V 900A 2500W D4 | 92 | $147.79 | |
APTGT200DU120G
|
Microsemi Corporation | POWER MOD IGBT TRENCH DL SRC SP6 | 98 | $147.04 | |

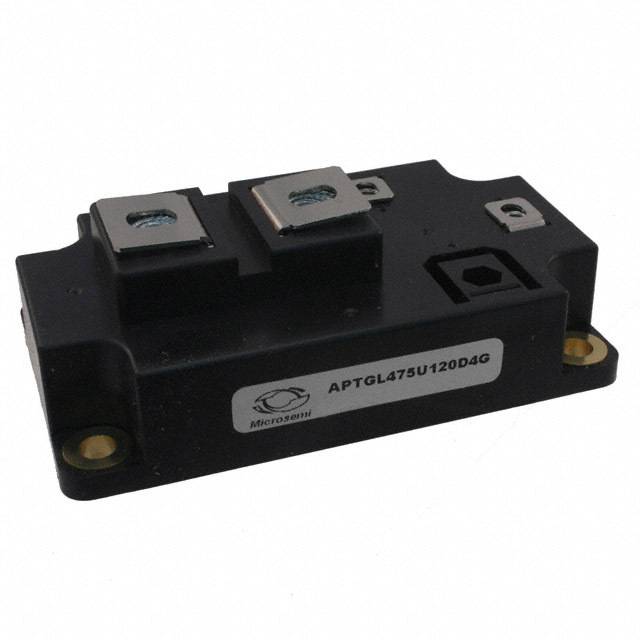

APTGL475U120D4G
|
Microsemi Corporation | IGBT4 SGL SWITCH 1200V 610A D4 | 96 | $142.49 | |
MG1275W-XBN2MM
|
Littelfuse Inc. | IGBT MOD 1200V 75A PKG W CRCT:XB | 35 | $132.19 |
