IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

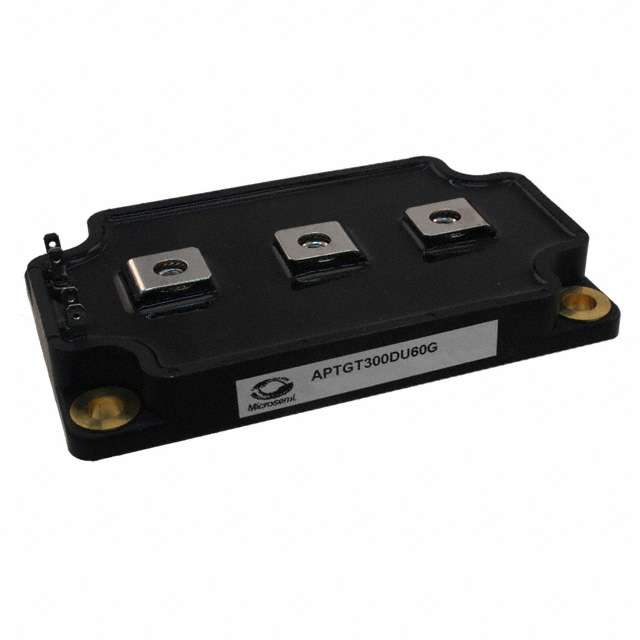

APTGT300DU60G
|
Microsemi Corporation | IGBT MOD TRENCH DUAL SOURCE SP6 | 82 | $120.83 | |
MG06150S-BN4MM
|
Littelfuse Inc. | IGBT 600V 225A 500W PKG S | 39 | $83.33 | |
FF300R12KT3HOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 300A | 43 | $133.04 | |
|
FPF2G120BF07ASP
|
ON Semiconductor | IC LOAD SWITCH | 70 | $109.28 | |

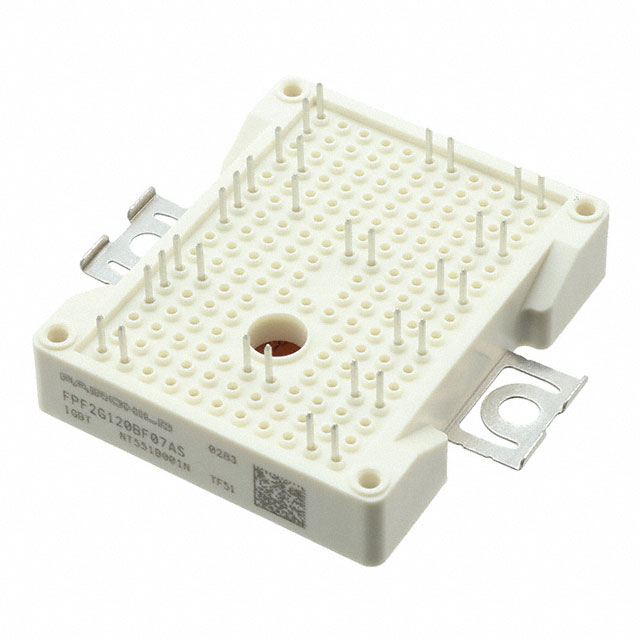

FPF2G120BF07AS
|
ON Semiconductor | IC LOAD SWITCH | 65 | $105.40 | |

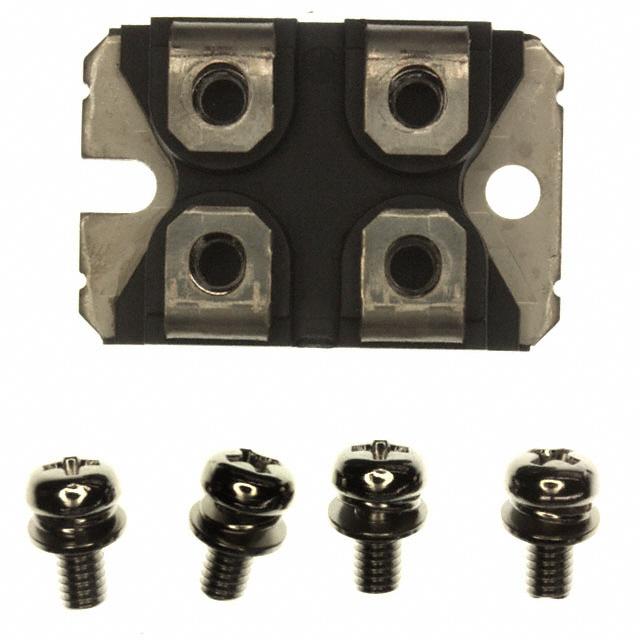

VS-GT80DA120U
|
Vishay / Semiconductor - Diodes Division | OUTPUT & SW MODULES - SOT-227 IG | 144 | $36.79 | |
MG12150W-XN2MM
|
Littelfuse Inc. | IGBT MOD 1200V 150A PKG W CRCT:X | 59 | $185.69 | |

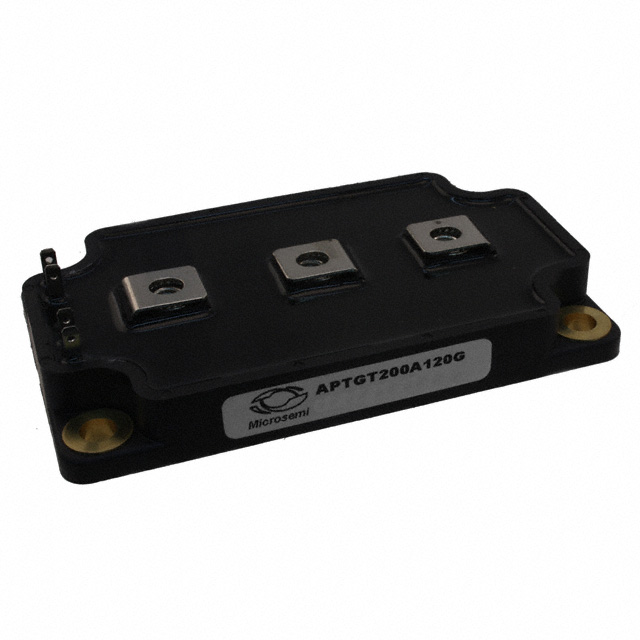

APTGT200A120G
|
Microsemi Corporation | POWER MODULE IGBT 1200V 200A SP6 | 96 | $117.96 | |
APT60GF120JRDQ3
|
Microsemi Corporation | IGBT 1200V 149A 625W SOT227 | 31 | $80.46 | |
APT75GP120J
|
Microsemi Corporation | IGBT 1200V 128A 543W SOT227 | 125 | $40.17 |
