IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
VS-CPV364M4FPBF
|
Vishay / Semiconductor - Diodes Division | MOD IGBT 3PHASE INV 600V SIP | 209 | $42.89 | |

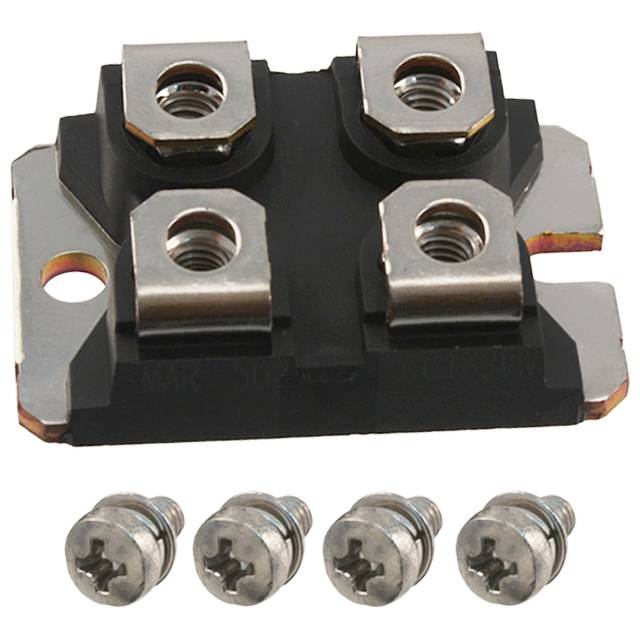

IXYN82N120C3H1
|
IXYS | IGBT MODULE 1200V 105A SOT227B | 105 | $36.67 | |

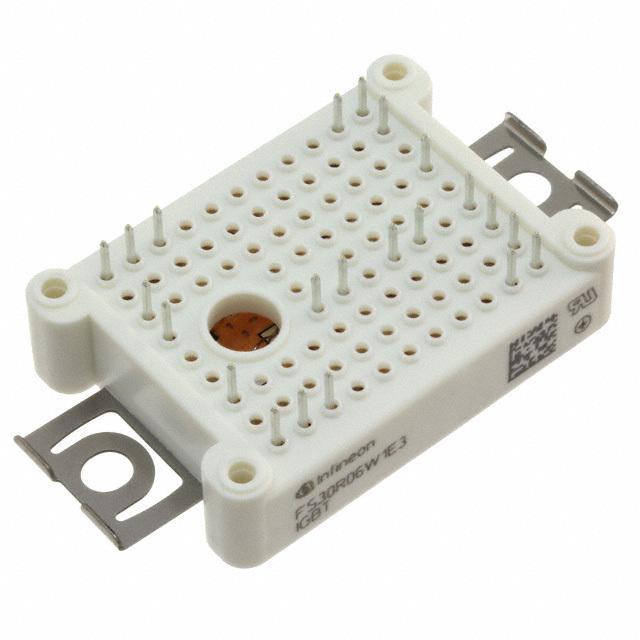

FS25R12W1T4BOMA1
|
Infineon Technologies | IGBT MODULE 1200V 25A | 110 | $35.99 | |
APT200GN60J
|
Microsemi Corporation | IGBT 600V 283A 682W SOT227 | 141 | $32.97 | |
STGE200NB60S
|
STMicroelectronics | IGBT N-CHAN 150A 600V ISOTOP | 185 | $27.96 | |

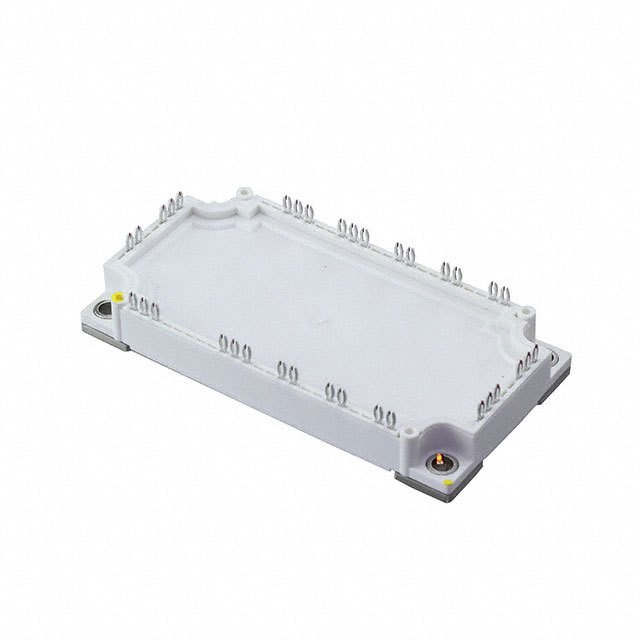

FP75R12KT4B11BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 75A | 79 | $143.64 | |
FZ600R12KE3HOSA1
|
Infineon Technologies | IGBT MODULE 1200V 600A | 52 | $133.04 | |
FF200R17KE3HOSA1
|
Infineon Technologies | IGBT MODULE 1700V 200A | 120 | $133.04 | |
MG12200D-BA1MM
|
Littelfuse Inc. | IGBT 1200V 300A 1400W PKG D | 59 | $124.68 | |
|
MG06300D-BN4MM
|
Littelfuse Inc. | IGBT 600V 400A 940W PKG D | 61 | $122.16 |
