IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
FF400R12KE3HOSA1
|
Infineon Technologies | IGBT MODULE 1200V 400A | 25 | $155.13 | |

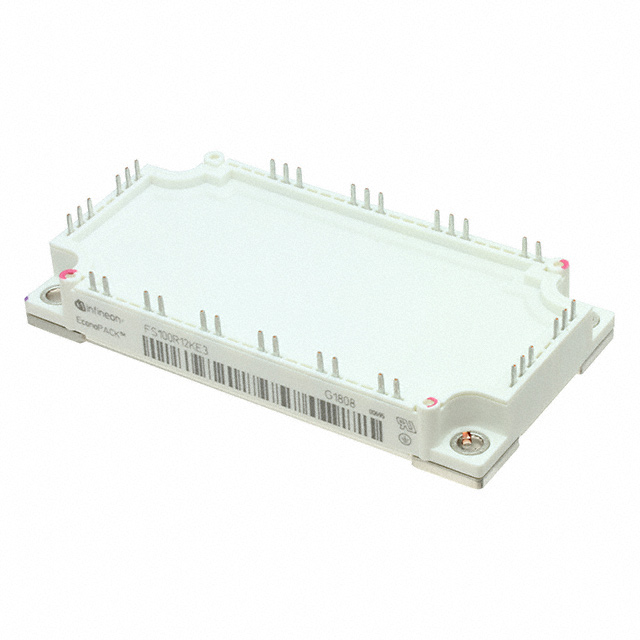

FS100R12KE3BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 100A | 8 | $147.32 | |
BSM35GP120BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 35A | 7 | $127.34 | |
FS75R12KE3BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 75A | 17 | $105.93 | |
|
FF200R12KT4HOSA1
|
Infineon Technologies | IGBT MODULE 1200V 200A | 16 | $100.81 | |
|
FF200R12KE4HOSA1
|
Infineon Technologies | IGBT MODULE 1200V 200A | 24 | $100.81 | |
BSM200GB60DLCHOSA1
|
Infineon Technologies | IGBT MODULE 600V 230A | 15 | $93.22 | |
FF150R12RT4HOSA1
|
Infineon Technologies | IGBT MODULE 1200V 150A | 18 | $62.51 | |
MG1250S-BA1MM
|
Littelfuse Inc. | IGBT 1200V 80A 500W PKG S | 6 | $57.75 | |
APT150GN60JDQ4
|
Microsemi Corporation | IGBT 600V 220A 536W SOT227 | 70 | $34.65 |
