IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APT45GP120JDQ2
|
Microsemi Corporation | IGBT 1200V 75A 329W SOT227 | 0 | $39.57 | |
|
APT150GN120J
|
Microsemi Corporation | IGBT 1200V 215A 625W SOT227 | 0 | $39.02 | |
IXGN320N60A3
|
IXYS | IGBT 600V SOT-227B | 0 | $27.12 | |

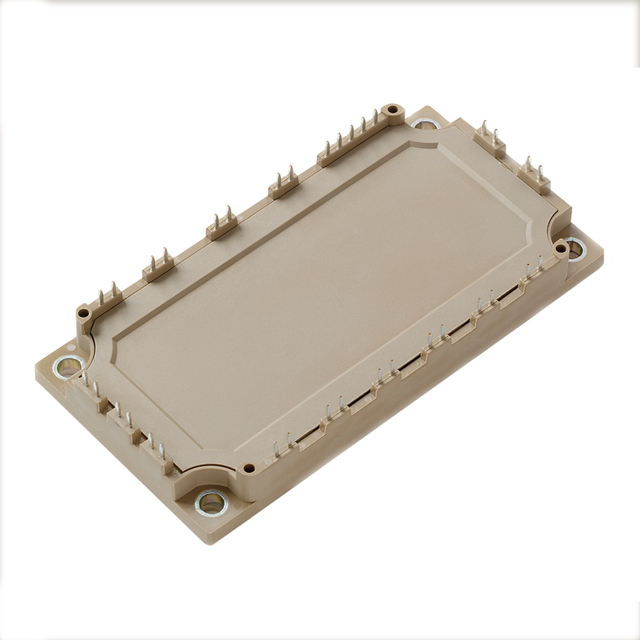

FP150R12KT4B11BPSA1
|
Infineon Technologies | IGBT MODULE 1200V 150A | 10 | $243.50 | |

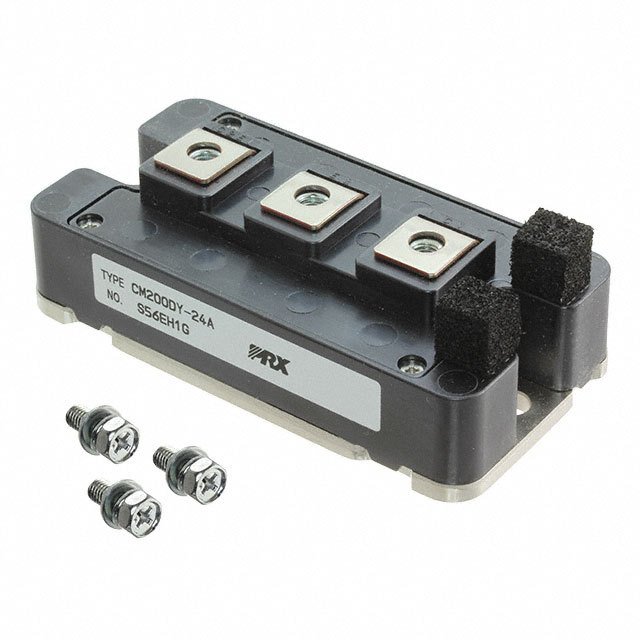

CM200DY-24A
|
Powerex, Inc. | IGBT MOD DUAL 1200V 200A A SER | 14 | $162.47 | |
MG12300WB-BN2MM
|
Littelfuse Inc. | IGBT 1200V 500A 1400W PKG WB | 12 | $153.53 | |
CM200EXS-34SA
|
Powerex, Inc. | IGBT 1700V 200A 2000W MODULE | 2 | $152.01 | |
MG12100W-XN2MM
|
Littelfuse Inc. | IGBT MOD 1200V 100A PKG W CRCT:X | 9 | $150.06 | |
MG06400D-BN4MM
|
Littelfuse Inc. | IGBT 600V 500A 1250W PKG D | 18 | $142.08 | |
NXH160T120L2Q2F2SG
|
ON Semiconductor | PIM 1200V, 160A SPLIT TNP | 9 | $134.64 |
