IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
NXH80B120H2Q0SG
|
ON Semiconductor | PIM 1200V, 40A DUAL BOOST | 24 | $79.86 | |
MG12105S-BA1MM
|
Littelfuse Inc. | IGBT 1200V 150A 690W PKG S | 8 | $75.59 | |
|
MG12100S-BN2MM
|
Littelfuse Inc. | IGBT 1200V 140A 450W PKG S | 29 | $73.84 | |
|
MG06100S-BN4MM
|
Littelfuse Inc. | IGBT 600V 125A 330W PKG S | 14 | $73.49 | |
MG1225H-XN2MM
|
Littelfuse Inc. | IGBT MOD 1200V 25A PKG H CRCT:X | 35 | $68.06 | |
|
NXH80T120L2Q0S2G
|
ON Semiconductor | PIM 1200V, 80A TNPC CUSTO | 10 | $56.10 | |
APT65GP60J
|
Microsemi Corporation | IGBT 600V 130A 431W SOT227 | 10 | $36.88 | |
APT50GF60JU2
|
Microsemi Corporation | IGBT 600V 75A 277W SOT227 | 8 | $23.64 | |

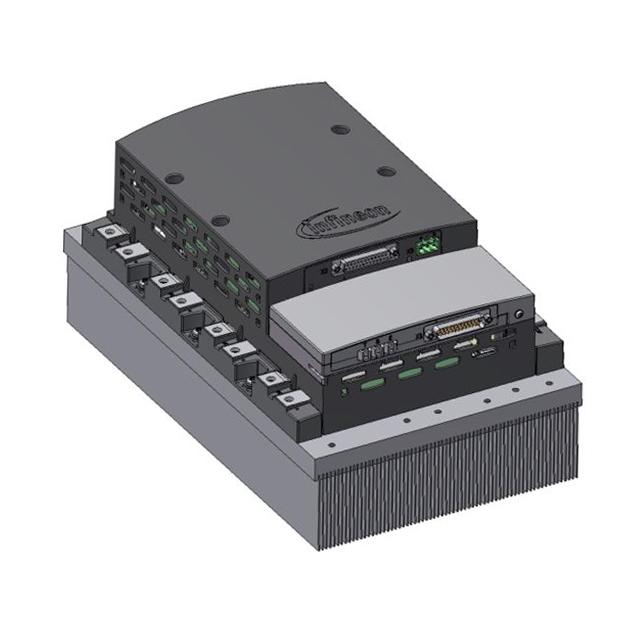

IFF2400P17AE4BPSA1
|
Infineon Technologies | MODULE IPM MIPAQP-4 | 2 | $2491.74 | |

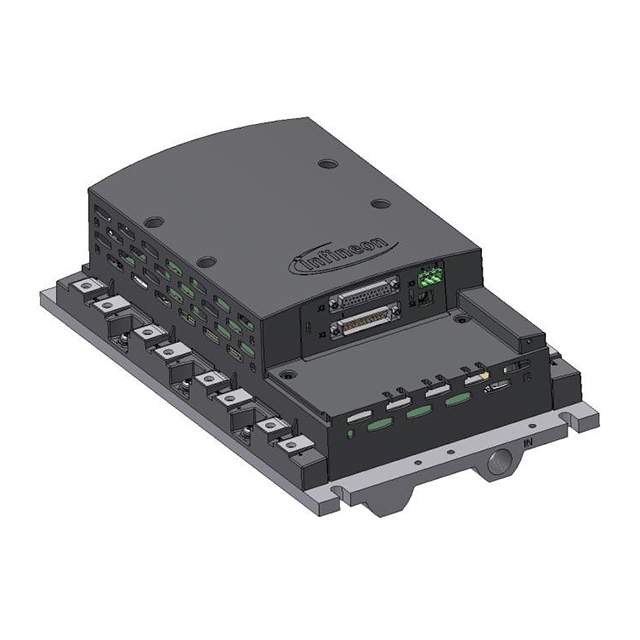

IFF2400P17LE4BPSA1
|
Infineon Technologies | MODULE IPM MIPAQP-4 | 3 | $2491.74 |
