IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
MG12225WB-BN2MM
|
Littelfuse Inc. | IGBT 1200V 325A 1050W PKG WB | 21 | $133.98 | |
CM300EXS-24S
|
Powerex, Inc. | IGBT 1200V 300A 2270W MODULE | 5 | $125.58 | |

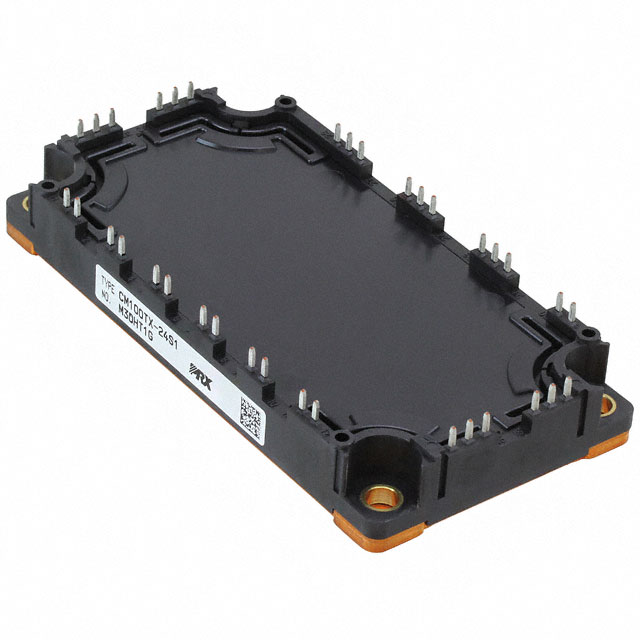

CM100TX-24S1
|
Powerex, Inc. | IGBT MOD NX 100A 1200V 6-PAC | 16 | $125.03 | |

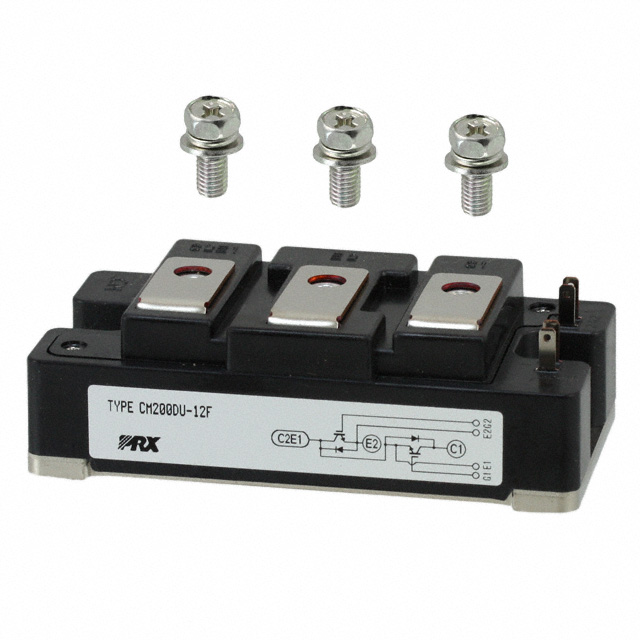

CM200DU-12F
|
Powerex, Inc. | IGBT MOD DUAL 600V 200A F SER | 8 | $124.12 | |
MG12200D-BN2MM
|
Littelfuse Inc. | IGBT 1200V 290A 1050W PKG D | 20 | $123.26 | |
APTGT300A60TG
|
Microsemi Corporation | POWER MOD IGBT TRENCH PH LEG SP4 | 6 | $114.83 | |
MUBW50-12A8
|
IXYS | MODULE IGBT CBI E3 | 5 | $111.99 | |
|
MG12100D-BA1MM
|
Littelfuse Inc. | IGBT 1200V 160A 1000W PKG D | 18 | $106.66 | |
|
CM150DX-24S
|
Powerex, Inc. | IGBT MODULE DUAL 150A 1200V | 2 | $96.57 | |
APTGL180A1202G
|
Microsemi Corporation | POWER MOD IGBT4 PHASE LEG SP2 | 2 | $92.80 |
