IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
FF600R12KE4BOSA1
|
Infineon Technologies | MOD IGBT MED PWR 62MM-1 | 7 | $183.64 | |
|
FF300R17KE3HOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 300A | 11 | $168.88 | |

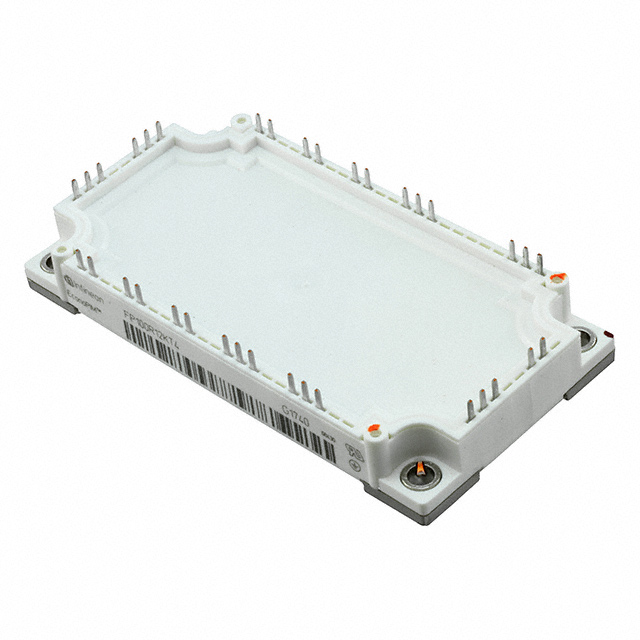

FP100R12KT4BOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 100A | 7 | $167.95 | |
|
FD300R17KE4PHOSA1
|
Infineon Technologies | IGBT MODULE 1700V 300A | 6 | $148.60 | |
|
FD450R12KE4PHOSA1
|
Infineon Technologies | IGBT MODULE 1200V 450A | 8 | $145.07 | |
FF300R12KE3HOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 300A | 19 | $133.04 | |

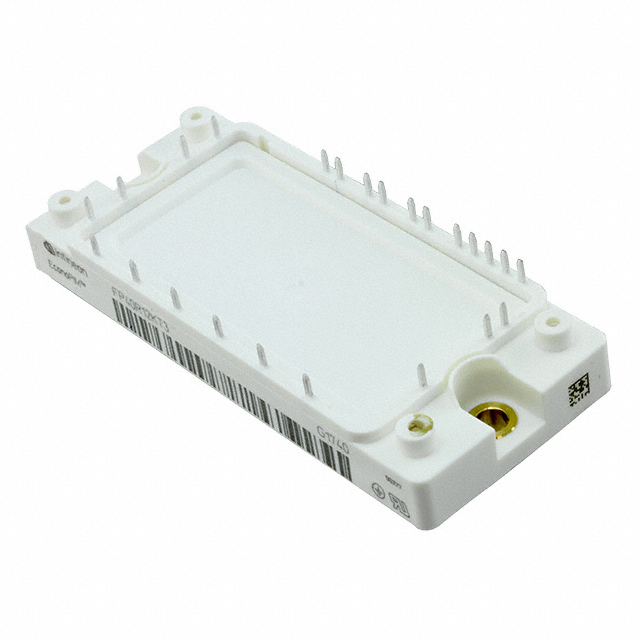

FP40R12KT3BOSA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 40A | 6 | $87.59 | |
|
FP35R12KT4B11BOSA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 35A | 16 | $81.56 | |

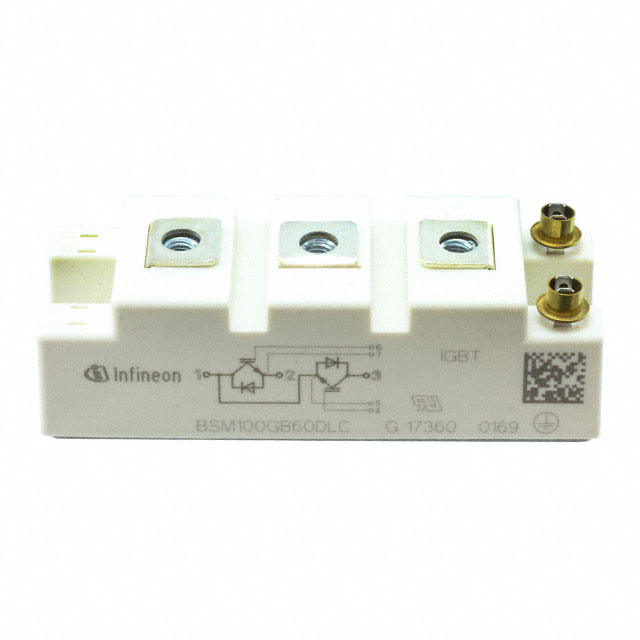

BSM100GB60DLCHOSA1
|
Infineon Technologies | IGBT MODULE 600V 130A | 13 | $72.67 | |
A2C35S12M3-F
|
STMicroelectronics | IGBT TRENCH 1200V 35A ACEPACK2 | 16 | $54.92 |
