IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

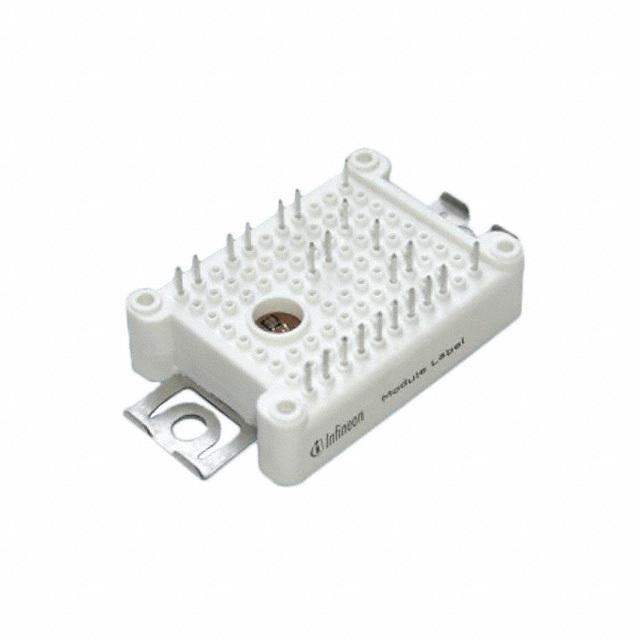

FP15R12W1T4PB11BPSA1
|
Infineon Technologies | MOD IGBT LOW PWR EASY1B-2 | 29 | $38.69 | |

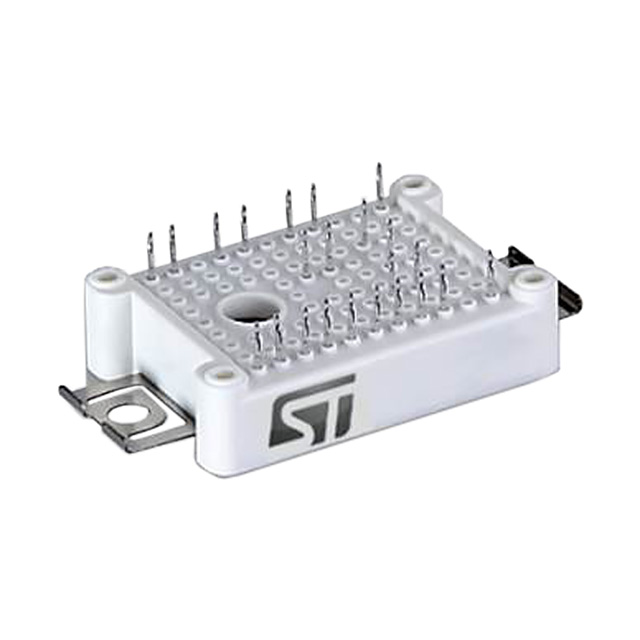

A1C15S12M3
|
STMicroelectronics | IGBT TRENCH 1200V 15A ACEPACK1 | 72 | $38.53 | |
|
FP10R12W1T4PB11BPSA1
|
Infineon Technologies | MOD IGBT LOW PWR EASY1B-2 | 30 | $38.26 | |

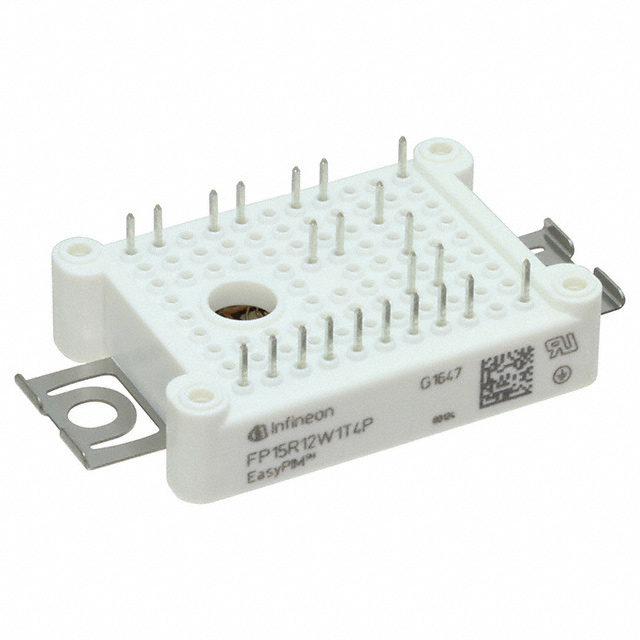

FP15R12W1T4PBPSA1
|
Infineon Technologies | MOD IGBT LOW PWR EASY1B-2 | 36 | $37.70 | |
|
A1P50S65M2
|
STMicroelectronics | IGBT TRENCH 650V 50A ACEPACK1 | 31 | $37.64 | |
|
FP10R12W1T4PBPSA1
|
Infineon Technologies | MOD IGBT LOW PWR EASY1B-2 | 25 | $37.22 | |
FP10R12W1T7B11BOMA1
|
Infineon Technologies | LOW POWER EASY | 12 | $36.09 | |
GSID300A125S5C1
|
Global Power Technologies Group | IGBT MODULE 1250V 600A CHASSIS | 19 | $348.91 | |
FP150R12KT4PB11BPSA1
|
Infineon Technologies | IGBT MODULE 1200V 150A | 6 | $250.86 | |
|
FP150R12KT4BPSA1
|
Infineon Technologies | IGBT MODULE 1200V 150A | 6 | $243.50 |
