IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APTGT300SK60D3G
|
Microsemi Corporation | IGBT BUCK CHOPPER 600V 400A D3 | 4 | $114.19 | |
FP50R12KE3BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 50A | 7 | $112.46 | |
APTGT100H60T3G
|
Microsemi Corporation | IGBT FULL BRIDGE 600V 150A SP3 | 13 | $76.85 | |
VS-ETF150Y65N
|
Vishay / Semiconductor - Diodes Division | IGBT 650V 150A EMIPAK-2B | 9 | $71.99 | |

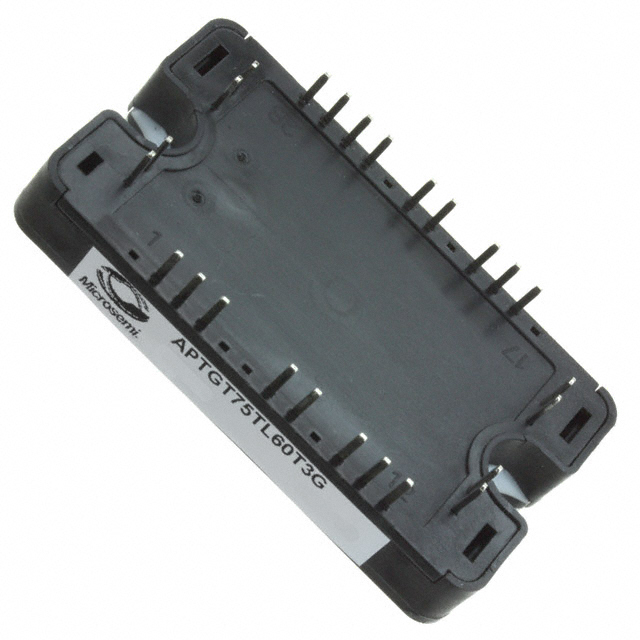

APTGT75TL60T3G
|
Microsemi Corporation | POWER MODULE IGBT 600V 75A SP3 | 14 | $68.40 | |
APTGT50H60T3G
|
Microsemi Corporation | POWER MOD IGBT3 FULL BRIDGE SP3 | 16 | $55.57 | |
APTGT50SK170T1G
|
Microsemi Corporation | IGBT 1700V 75A 312W SP1 | 16 | $53.08 | |
APT70GR120JD60
|
Microsemi Corporation | IGBT 1200V 112A 543W SOT227 | 10 | $37.58 | |
APT46GA90JD40
|
Microsemi Corporation | IGBT 900V 87A 284W SOT-227 | 18 | $30.14 | |
|
FS450R12OE4BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 450A | 2 | $491.12 |
