IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
FP35R12W2T4PBPSA1
|
Infineon Technologies | MOD IGBT LOW PWR EASY2B-1 | 0 | $51.99 | |
A1P35S12M3
|
STMicroelectronics | IGBT TRENCH 1200V 35A ACEPACK1 | 0 | $41.16 | |
|
A1P25S12M3
|
STMicroelectronics | IGBT TRENCH 1200V 25A ACEPACK1 | 3 | $38.50 | |

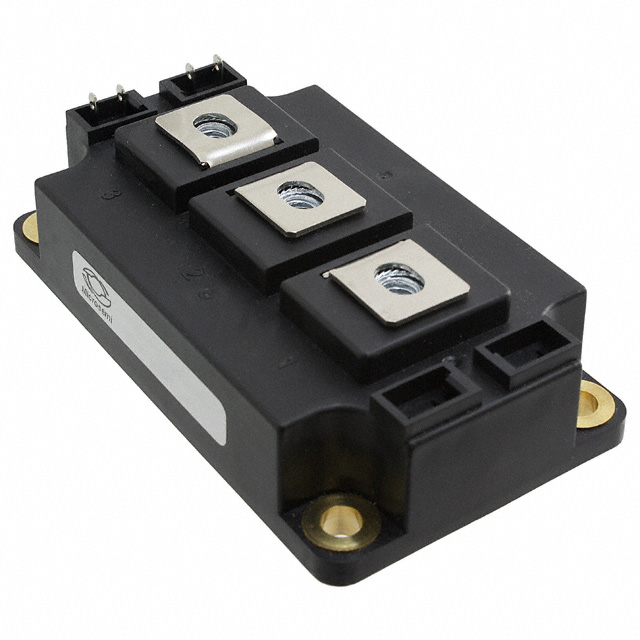

APTGT400A60D3G
|
Microsemi Corporation | POWER MOD IGBT TRENCH PH LEG D3 | 1 | $145.26 | |

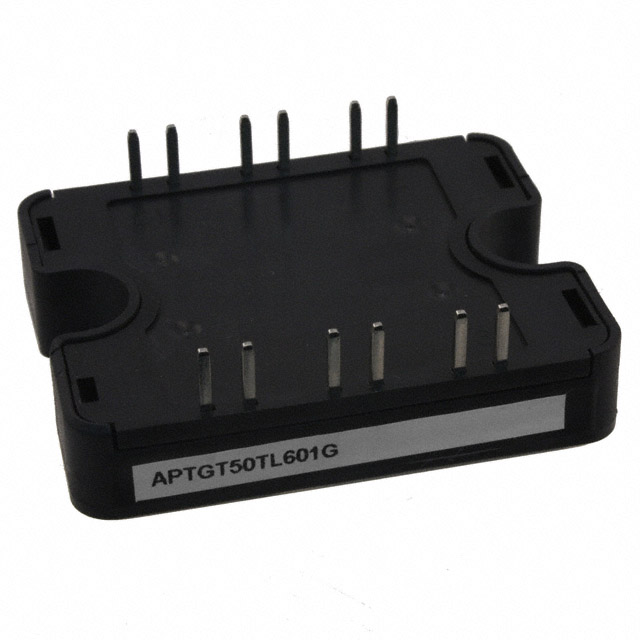

APTGT50TL601G
|
Microsemi Corporation | POWER MODULE IGBT 600V 50A SP1 | 1 | $53.76 | |
APT100GT120JU3
|
Microsemi Corporation | IGBT 1200V 140A 480W SOT227 | 2 | $37.95 | |
FZ1600R17KE3NOSA1
|
Infineon Technologies | IGBT MODULE 1700V 1600A | 0 | $795.73 | |
|
FF900R12IE4BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 900A | 0 | $487.08 | |
FS300R12KE3BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 300A | 0 | $421.87 | |
GSID200A120S5C1
|
Global Power Technologies Group | IGBT MODULE 1200V 335A | 1 | $184.88 |
