IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APTGF200A120D3G
|
Microsemi Corporation | IGBT MODULE NPT PHASE LEG D3 | 0 | $0.00 | |

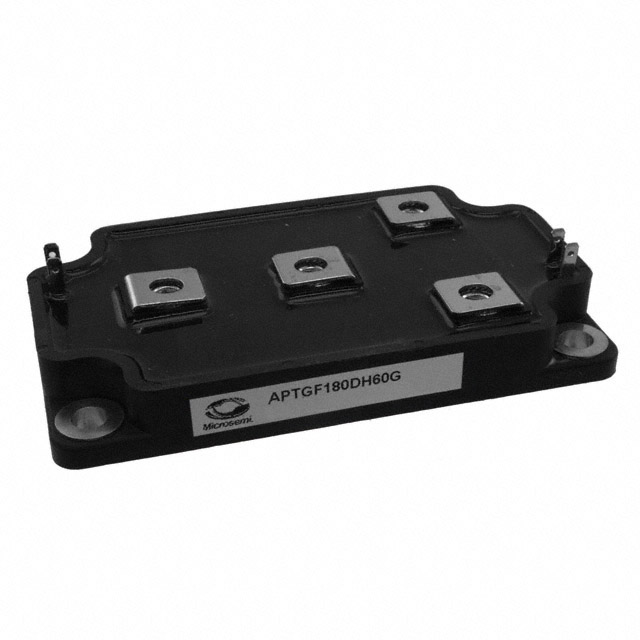

APTGF180DH60G
|
Microsemi Corporation | POWER MODULE IGBT 600V 180A SP6 | 0 | $0.00 | |
|
APTGF180DA60TG
|
Microsemi Corporation | IGBT 600V 220A 833W SP4 | 0 | $0.00 | |
|
APTGF180A60TG
|
Microsemi Corporation | IGBT MODULE NPT PHASE LEG SP4 | 0 | $0.00 | |
|
APTGF165SK60D1G
|
Microsemi Corporation | IGBT 600V 230A 730W D1 | 0 | $0.00 | |
|
APTGF165DA60D1G
|
Microsemi Corporation | IGBT 600V 230A 730W D1 | 0 | $0.00 | |

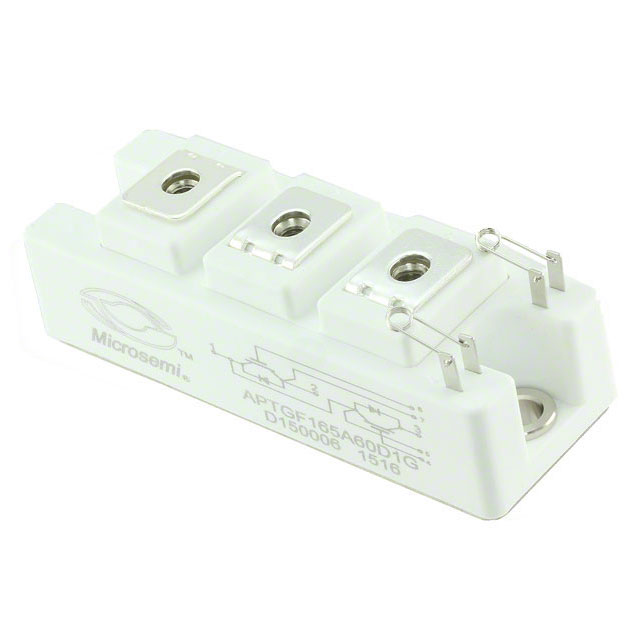

APTGF165A60D1G
|
Microsemi Corporation | IGBT NPT PHASE 600V 230A D1 | 0 | $0.00 | |
|
APTGF15X120T3G
|
Microsemi Corporation | IGBT MODULE NPT 3PH BRIDGE SP3 | 0 | $0.00 | |
|
APTGF15H120T3G
|
Microsemi Corporation | IGBT MODULE NPT FULL BRIDGE SP3 | 0 | $0.00 | |
|
APTGF15H120T1G
|
Microsemi Corporation | IGBT MODULE NPT FULL BRIDGE SP1 | 0 | $0.00 |
