IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

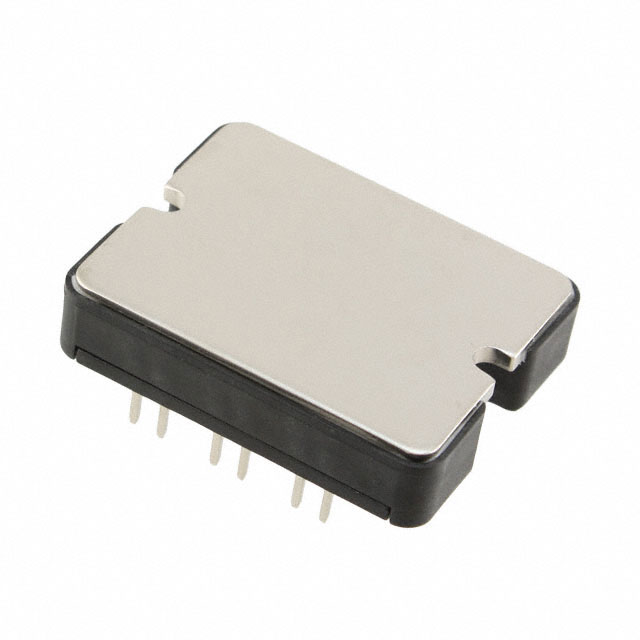

APTGF100DA120T1G
|
Microsemi Corporation | IGBT 1200V 130A 735W SP1 | 0 | $0.00 | |

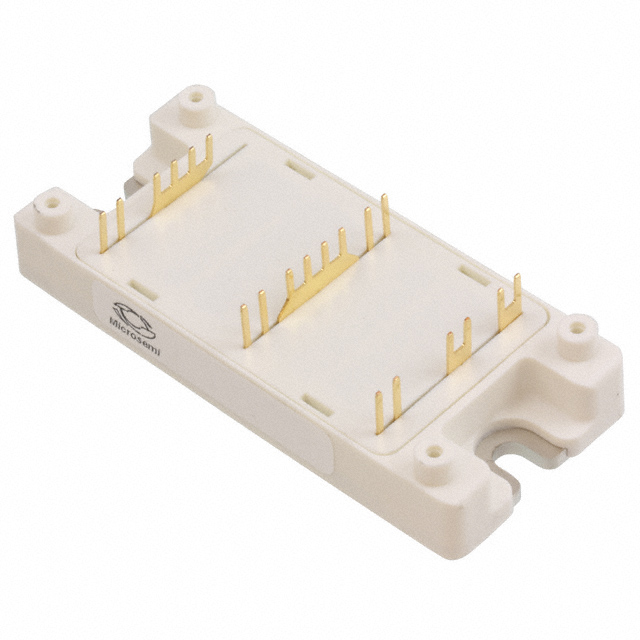

APTGF100A120TG
|
Microsemi Corporation | POWER MOD IGBT NPT PHASE LEG SP4 | 0 | $0.00 | |
APT60GF60JU3
|
Microsemi Corporation | IGBT 600V 93A 378W SOT227 | 0 | $0.00 | |
|
APT50GF60JU3
|
Microsemi Corporation | IGBT 600V 75A 277W SOT227 | 0 | $0.00 | |
APT30GF60JU3
|
Microsemi Corporation | IGBT 600V 58A 192W SOT227 | 0 | $0.00 | |
APT30GF60JU2
|
Microsemi Corporation | IGBT 600V 58A 192W SOT227 | 0 | $0.00 | |
|
APT100GF60JU3
|
Microsemi Corporation | IGBT 600V 120A 416W SOT227 | 0 | $0.00 | |
|
APT100GF60JU2
|
Microsemi Corporation | IGBT 600V 120A 416W SOT227 | 0 | $0.00 | |
VWI6-12P1
|
IXYS | MODULE IGBT 6PACK 1200V ECO-PAC2 | 0 | $0.00 | |
|
VIO75-12P1
|
IXYS | MOD IGBT DIODE SGL 1200V ECOPAC2 | 0 | $0.00 |
