IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

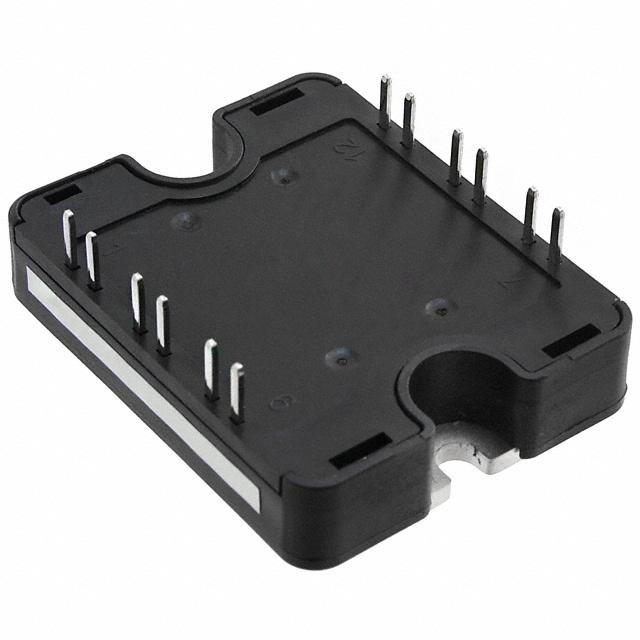

APTGF25H120T1G
|
Microsemi Corporation | POWER MOD IGBT NPT FULL BRDG SP1 | 0 | $0.00 | |
APTGF25DSK120T3G
|
Microsemi Corporation | IGBT MODULE NPT DL BCK CHOP SP3 | 0 | $0.00 | |
|
APTGF25DDA120T3G
|
Microsemi Corporation | IGBT MODULE NPT DL BST CHOP SP3 | 0 | $0.00 | |
|
APTGF25A120T1G
|
Microsemi Corporation | IGBT MODULE NPT PHASE LEG SP1 | 0 | $0.00 | |
|
APTGF250SK60D3G
|
Microsemi Corporation | IGBT 600V 400A 1250W D3 | 0 | $0.00 | |
|
APTGF250DA60D3G
|
Microsemi Corporation | IGBT 600V 400A 1250W D3 | 0 | $0.00 | |
|
APTGF250A60D3G
|
Microsemi Corporation | IGBT MODULE NPT PHASE LEG D3 | 0 | $0.00 | |
|
APTGF200U120DG
|
Microsemi Corporation | IGBT 1200V 275A 1136W SP6 | 0 | $0.00 | |
|
APTGF200SK120D3G
|
Microsemi Corporation | IGBT 1200V 300A 1400W D3 | 0 | $0.00 | |
|
APTGF200DA120D3G
|
Microsemi Corporation | IGBT 1200V 300A 1400W D3 | 0 | $0.00 |
