IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APTGF300U120DG
|
Microsemi Corporation | IGBT 1200V 400A 1780W SP6 | 0 | $0.00 | |
APTGF300SK120G
|
Microsemi Corporation | IGBT 1200V 400A 1780W SP6 | 0 | $0.00 | |
|
APTGF300SK120D3G
|
Microsemi Corporation | IGBT 1200V 420A 2100W D3 | 0 | $0.00 | |
|
APTGF300DU120G
|
Microsemi Corporation | IGBT MODULE NPT DUAL SP6 | 0 | $0.00 | |

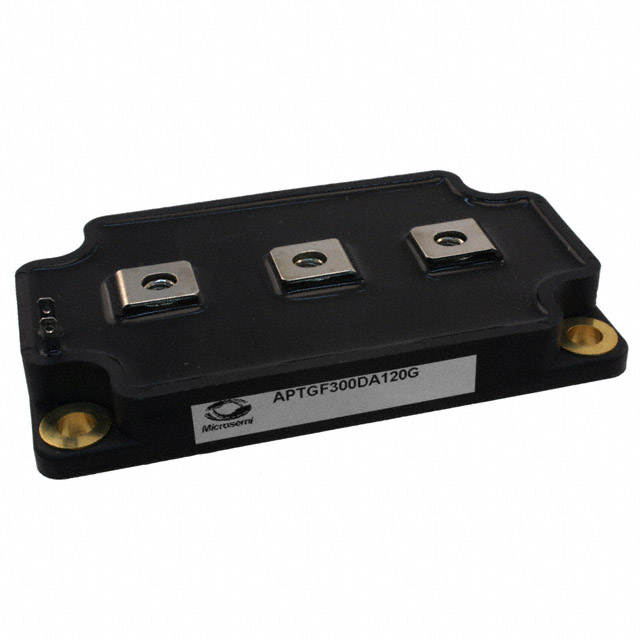

APTGF300DA120G
|
Microsemi Corporation | IGBT NPT BOOST CHOP 1200V 400A S | 0 | $0.00 | |
|
APTGF300DA120D3G
|
Microsemi Corporation | IGBT 1200V 420A 2100W D3 | 0 | $0.00 | |
APTGF300A120G
|
Microsemi Corporation | POWER MOD IGBT NPT PHASE LEG SP6 | 0 | $0.00 | |
APTGF300A120D3G
|
Microsemi Corporation | IGBT MODULE NPT PHASE LEG D3 | 0 | $0.00 | |
|
APTGF25X120T3G
|
Microsemi Corporation | IGBT MODULE NPT 3PH BRIDGE SP3 | 0 | $0.00 | |
|
APTGF25H120T3G
|
Microsemi Corporation | IGBT MODULE NPT FULL BRIDGE SP3 | 0 | $0.00 |
