IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
CM450DX-24S
|
Powerex, Inc. | IGBT MOD DUAL 1200V 450A NX SER | 0 | $0.00 | |
|
CM300DX-24S
|
Powerex, Inc. | IGBT MOD DUAL 1200V 300A NX SER | 0 | $0.00 | |
CM150TX-24S
|
Powerex, Inc. | IGBT MOD 1200V 150A 6PAC NX SER | 0 | $0.00 | |

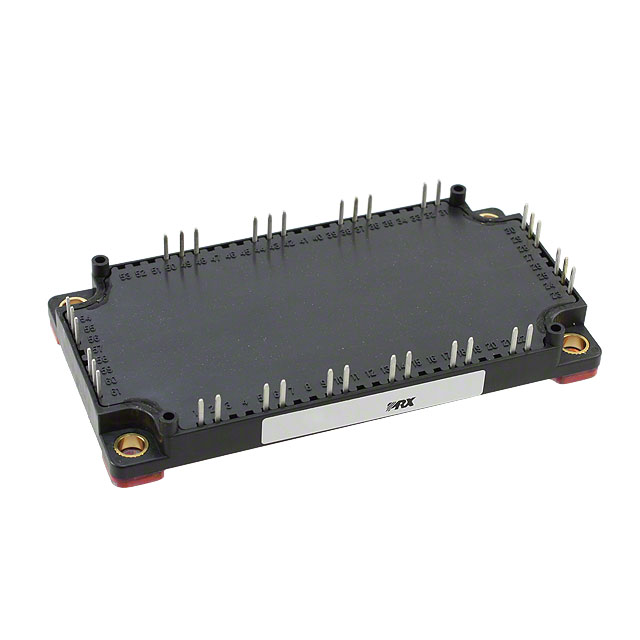

CM150RX-24S
|
Powerex, Inc. | IGBT MOD 7PAC 1200V 150A NX SER | 0 | $0.00 | |
APTGF150A120T3WG
|
Microsemi Corporation | IGBT NPT PHASE 1200V 210A SP3 | 0 | $0.00 | |
APTGF100A120T3WG
|
Microsemi Corporation | IGBT NPT PHASE 1200V 130A SP3 | 0 | $0.00 | |
APTGF50TL60T3G
|
Microsemi Corporation | IGBT ARRAY 600V 65A 250W SP3 | 0 | $0.00 | |
MWI451-17E9
|
IXYS | IGBT E9PACK | 0 | $0.00 | |
|
MITA30WB600TMH
|
IXYS | IGBT MODULE CBI MINIPACK2 | 0 | $0.00 | |
|
MIO600-65E11
|
IXYS | IGBT MODULE SGL 600A E11 | 0 | $0.00 |
