IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

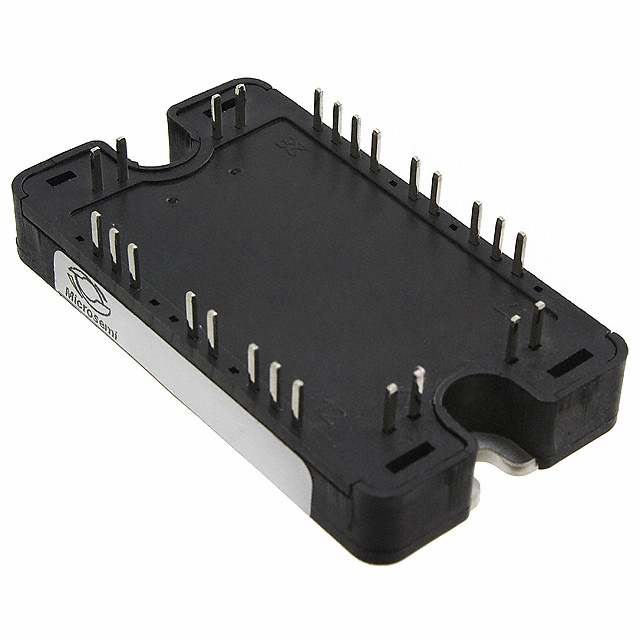

APTGF90H60T3G
|
Microsemi Corporation | POWER MOD IGBT FULL BRIDGE SP3 | 0 | $0.00 | |

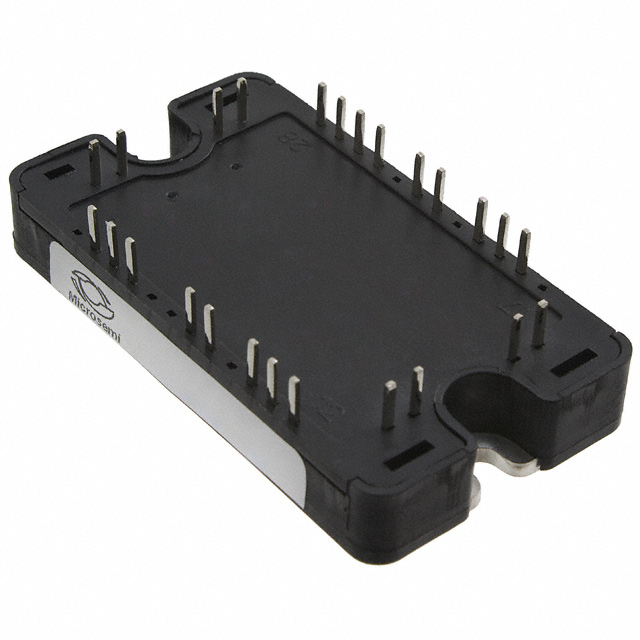

APTGF50VDA60T3G
|
Microsemi Corporation | POWER MOD IGBT NPT DL BOOST SP3 | 0 | $0.00 | |

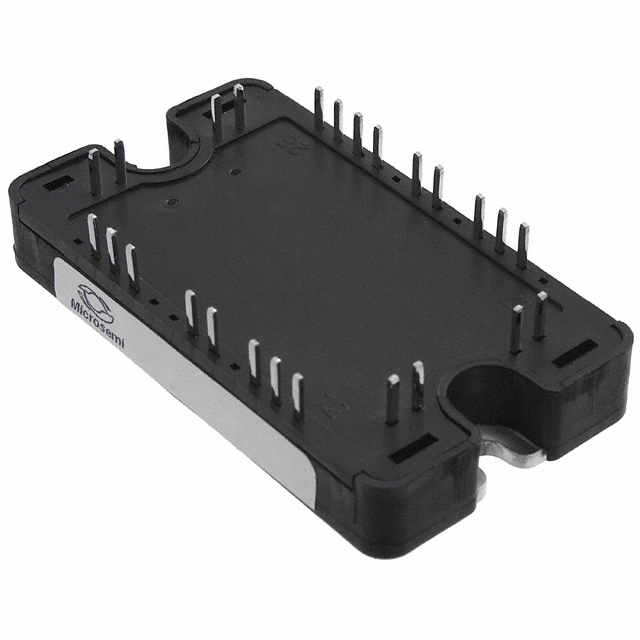

APTGF50VDA120T3G
|
Microsemi Corporation | POWER MOD IGBT NPT DL BOOST SP3 | 0 | $0.00 | |

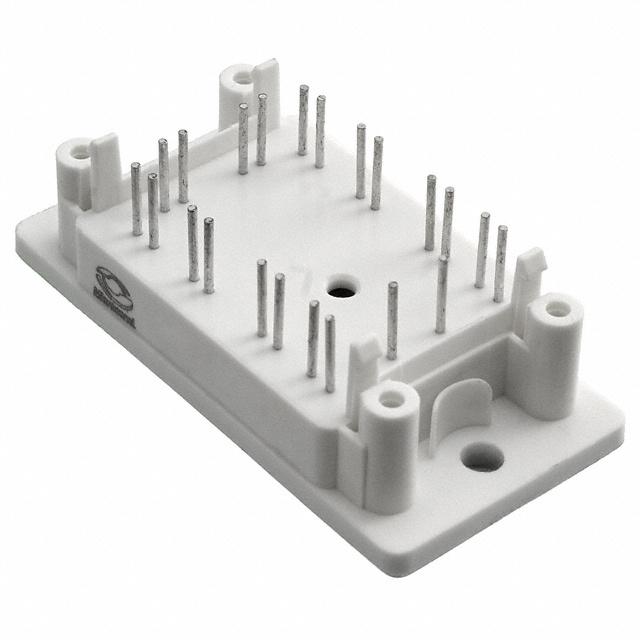

APTGF50H60T2G
|
Microsemi Corporation | POWER MOD IGBT NPT FULL BRDG SP2 | 0 | $0.00 | |

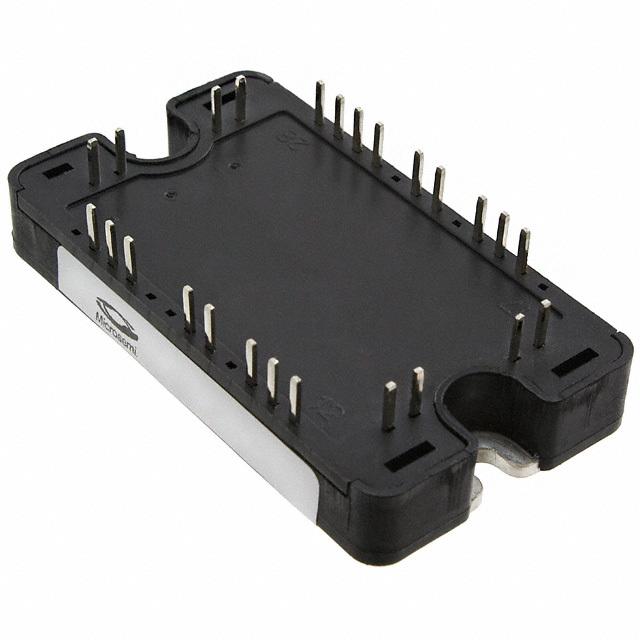

APTGF150A120T3AG
|
Microsemi Corporation | POWER MOD IGBT NPT PHASE LEG SP3 | 0 | $0.00 | |

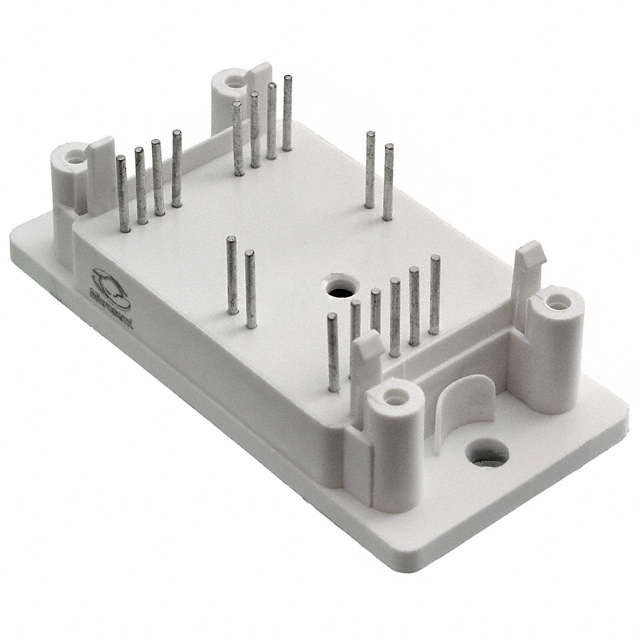

APTGF100A1202G
|
Microsemi Corporation | POWER MOD IGBT NPT PHASE LEG SP2 | 0 | $0.00 | |
FS400R07A1E3BOSA1
|
Infineon Technologies | IGBT 650V 500A 1250W | 0 | $0.00 | |
|
FS200R07A1E3BOSA1
|
Infineon Technologies | IGBT 650V 250A 790W | 0 | $0.00 | |

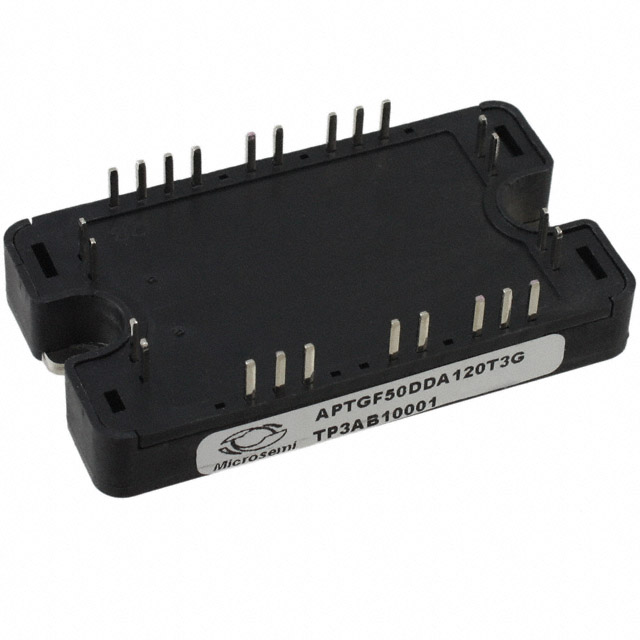

APTGF50DDA120T3G
|
Microsemi Corporation | IGBT MOD NPT 1200V 50A SP3 | 0 | $0.00 | |
STGE200N60K
|
STMicroelectronics | IGBT N-CH 150A 600V ISOTOP | 0 | $0.00 |
