IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
IXGN40N60CD1
|
IXYS | IGBT 600V SOT-227B | 0 | $0.00 | |
|
IXGN200N60A
|
IXYS | IGBT 300A 600V SOT-227B | 0 | $0.00 | |
|
IXGN200N60
|
IXYS | IGBT 300A 600V SOT-227B | 0 | $0.00 | |

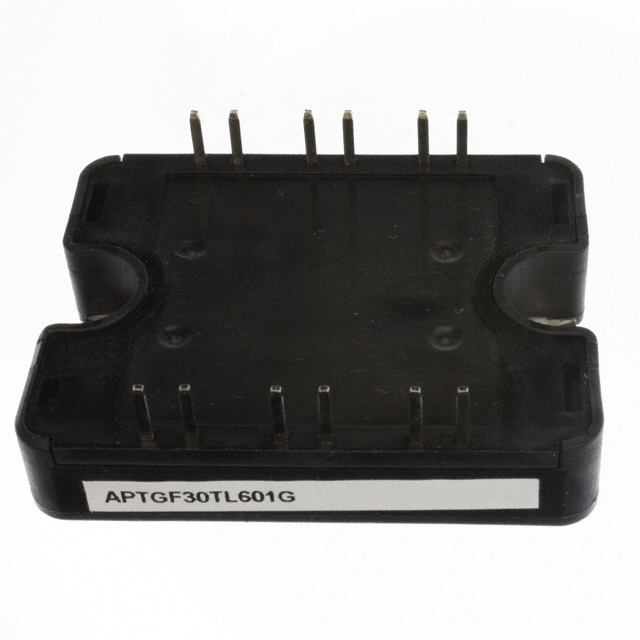

APTGF30TL601G
|
Microsemi Corporation | POWER MODULE IGBT 600V 30A SP1 | 0 | $0.00 | |

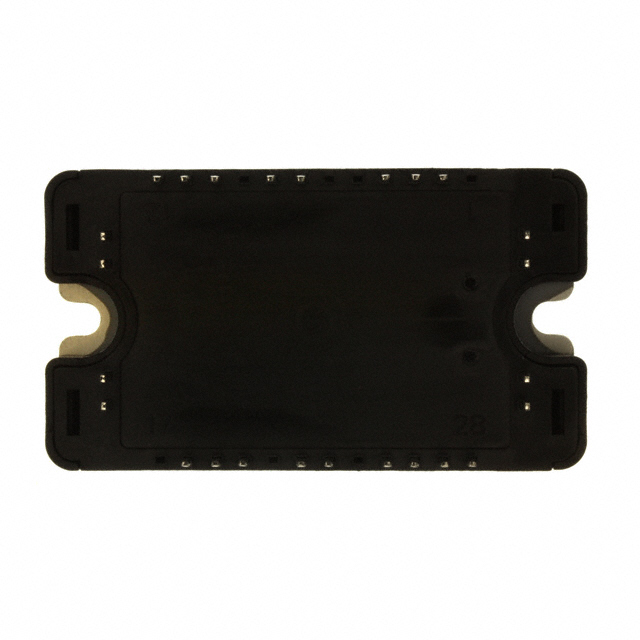

APTCV90TL12T3G
|
Microsemi Corporation | POWER MODULE IGBT QUAD 900V SP3 | 0 | $0.00 | |
|
QIS4506001
|
Powerex, Inc. | IGBT MOD SINGLE 4500V 60A | 0 | $0.00 | |
|
MG800J2YS50A
|
Powerex, Inc. | IGBT MOD CMPCT 600V 800A | 0 | $0.00 | |
MG600Q2YS60A
|
Powerex, Inc. | IGBT MOD CMPCT 1200V 600A | 0 | $0.00 | |
|
MG600J2YS61A
|
Powerex, Inc. | IGBT MOD CMPCT DUAL 600V 600A | 0 | $0.00 | |
|
MG400V2YS60A
|
Powerex, Inc. | IGBT MOD CMPCT DUAL 1700V 400A | 0 | $0.00 |
