IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APTGL90SK120T1G
|
Microsemi Corporation | MOD IGBT 1200V 110A SP1 | 0 | $0.00 | |
|
APTGL90DH120T3G
|
Microsemi Corporation | MOD IGBT 1200V 110A SP3 | 0 | $0.00 | |
|
APTGL60DSK120T3G
|
Microsemi Corporation | MOD IGBT 1200V 80A SP3 | 0 | $0.00 | |

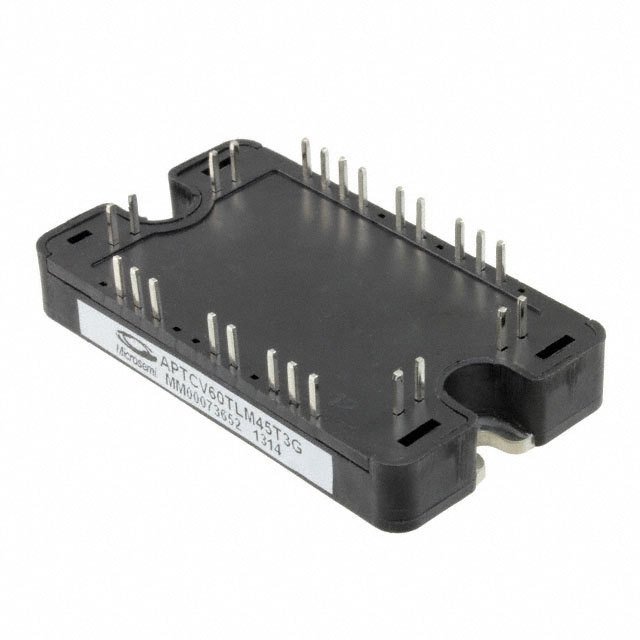

APTCV60TLM45T3G
|
Microsemi Corporation | POWER MODULE IGBT3 SP3 | 0 | $0.00 | |
|
MIXA40W1200TMH
|
IXYS | IGBT MODULE 1200V 40A | 0 | $0.00 | |
|
MIXA30W1200TMH
|
IXYS | IGBT MODULE 1200V 30A | 0 | $0.00 | |
VS-GT100NA120UX
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 134A 463W SOT-227 | 0 | $0.00 | |
|
VS-GT100LA120UX
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 134A 463W SOT-227 | 0 | $0.00 | |
|
VS-GT100DA60U
|
Vishay / Semiconductor - Diodes Division | IGBT 600V 184A 577W SOT-227 | 0 | $0.00 | |
|
IRG5K50FF06E
|
Infineon Technologies | MOD IGBT 600V 50A 6PK POWIR ECO | 0 | $0.00 |
