IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
CM75RX-24A
|
Powerex, Inc. | IGBT MOD 7PAC 1200V 75A NX SER | 0 | $0.00 | |

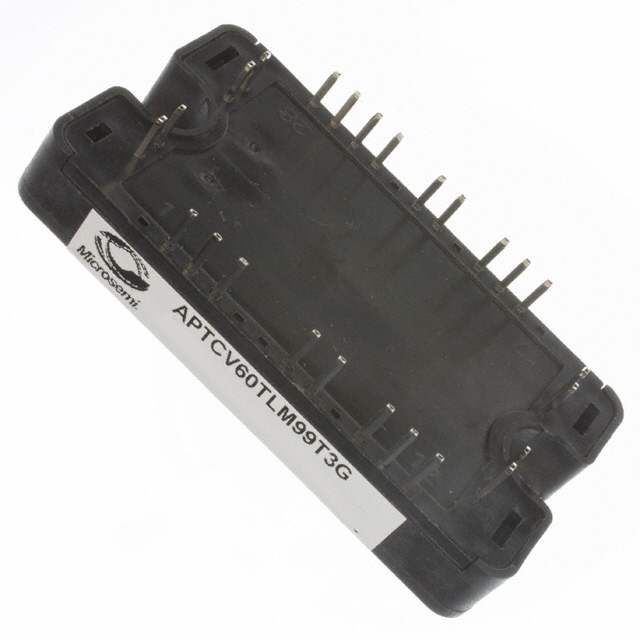

APTCV60TLM99T3G
|
Microsemi Corporation | POWER MODULE IGBT QUAD 600V SP3 | 0 | $0.00 | |
STGE50NC60WD
|
STMicroelectronics | IGBT UFAST N-CH 100A 600V ISOTOP | 0 | $0.00 | |
|
QIS4506002
|
Powerex, Inc. | IGBT MOD SINGLE 4500V 60A | 0 | $0.00 | |
CM100RX-24S
|
Powerex, Inc. | IGBT MOD 7PAC 1200V 100A NX SER | 0 | $0.00 | |
APTGF90DH60T3G
|
Microsemi Corporation | IGBT NPT BRIDGE 600V 110A SP3 | 0 | $0.00 | |

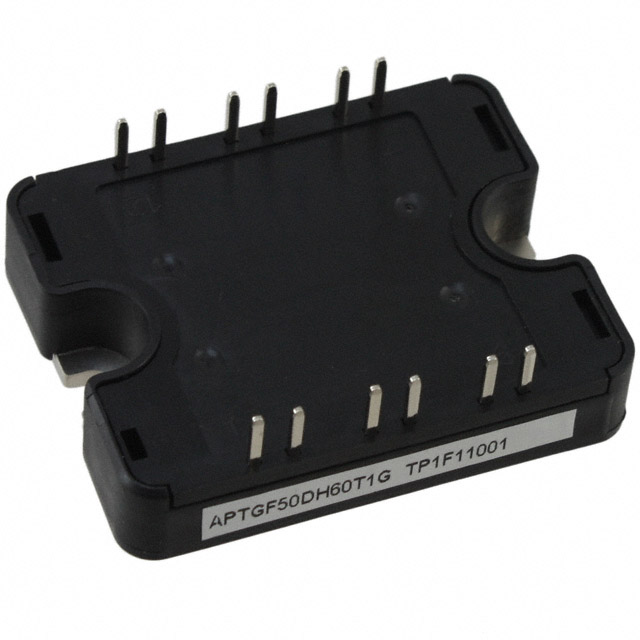

APTGF50DH60T1G
|
Microsemi Corporation | IGBT NPT BRIDGE 600V 65A SP1 | 0 | $0.00 | |
|
CM50MXA-24S
|
Powerex, Inc. | IGBT MOD CIB 50A 1200V | 0 | $0.00 | |
|
CM400DY-34A
|
Powerex, Inc. | IGBT MODULE DUAL 400A 1700V | 0 | $0.00 | |
|
CM35MXA-24S
|
Powerex, Inc. | IGBT MODULE CIB 35A 1200V | 0 | $0.00 |
