IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
BSM50GAL120DN2HOSA1
|
Infineon Technologies | IGBT 2 MED POWER 34MM-1 | 0 | $66.05 | |
|
MIXA60W1200TED
|
IXYS | IGBT MODULE 1200V 60A | 0 | $65.86 | |
APTGT50H120T3G
|
Microsemi Corporation | IGBT MOD TRENCH FULL BRIDGE SP3 | 0 | $65.39 | |
|
DF75R12W1H4FB11BOMA2
|
Infineon Technologies | MOD DIODE BRIDGE EASY1B-2-1 | 0 | $65.23 | |
|
F3L150R07W2E3B11BOMA1
|
Infineon Technologies | IGBT MODULE VCES 600V 150A | 0 | $65.23 | |
|
FS3L30R07W2H3FB11BPSA2
|
Infineon Technologies | MOD DIODE BRIDGE EASY2B-2-1 | 0 | $65.23 | |
|
DF80R12W2H3FB11BPSA1
|
Infineon Technologies | MOD DIODE BRIDGE EASY1B-2-1 | 0 | $65.23 | |

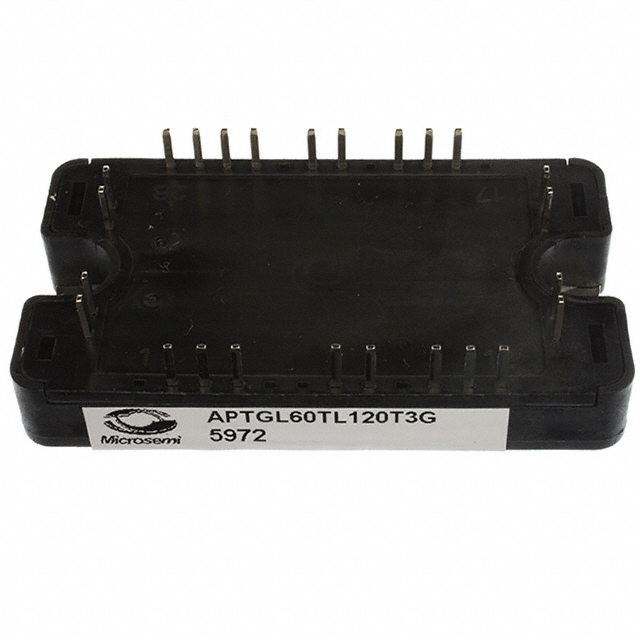

APTGL60TL120T3G
|
Microsemi Corporation | POWER MODULE IGBT 1200V 60A SP3 | 0 | $64.99 | |
|
MKI75-06A7T
|
IXYS | IGBT H-BRIDGE 600V E2PACK | 0 | $64.75 | |
|
MWI50-06A7T
|
IXYS | MOD IGBT SIXPACK RBSOA 600V E2 | 0 | $64.38 |
