IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APTGT35X120T3G
|
Microsemi Corporation | IGBT MOD TRENCH 3PH BRIDGE SP3 | 0 | $69.53 | |
|
FP25R12U1T4BPSA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 40A | 0 | $69.50 | |
|
IXBN75N170
|
IXYS | IGBT BIMOSFET 1700V 145A SOT227B | 0 | $69.33 | |
APTGT50DH120TG
|
Microsemi Corporation | IGBT MOD TRENCH ASYM BRIDGE SP4 | 0 | $69.17 | |
|
BSM50GB120DLCHOSA1
|
Infineon Technologies | IGBT 2 MED POWER 34MM-1 | 0 | $68.84 | |
|
MWI50-06A7
|
IXYS | MOD IGBT SIXPACK RBSOA 600V E2 | 4 | $68.64 | |
APTGT100TL60T3G
|
Microsemi Corporation | IGBT MODULE 3LEVEL INVERTER SP3 | 0 | $68.47 | |

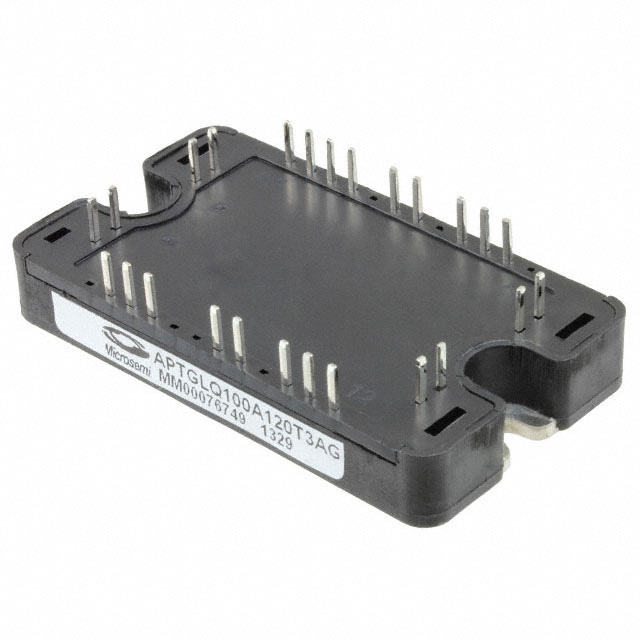

APTGLQ100A120T3AG
|
Microsemi Corporation | PWR MOD IGBT4 1200V 185A SP3 | 0 | $68.37 | |
|
APTGT75DU120TG
|
Microsemi Corporation | IGBT MOD TRENCH DUAL SOURCE SP4 | 0 | $68.16 | |
|
APTGL60H120T3G
|
Microsemi Corporation | MOD IGBT 1200V 80A SP3 | 0 | $68.06 |
