IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
MWI80-12T6K
|
IXYS | MOD IGBT SIXPACK RBSOA 1200V E1 | 0 | $64.34 | |
|
FAM65HR51DS2
|
ON Semiconductor | IC PIM BOOST CONVERTER | 0 | $64.00 | |
|
FAM65CR51DZ2
|
ON Semiconductor | IC PIM BOOST CONVERTER 12LD | 0 | $64.00 | |
|
MUBW15-12A7
|
IXYS | MODULE IGBT CBI E2 | 0 | $63.89 | |
|
APTGT100DH60TG
|
Microsemi Corporation | IGBT MOD TRENCH ASYM BRIDGE SP4 | 0 | $63.26 | |
|
BSM35GB120DN2HOSA1
|
Infineon Technologies | IGBT 2 MED POWER 34MM-1 | 0 | $63.26 | |
|
FP25R12KT4B15BOSA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 40A | 0 | $63.18 | |

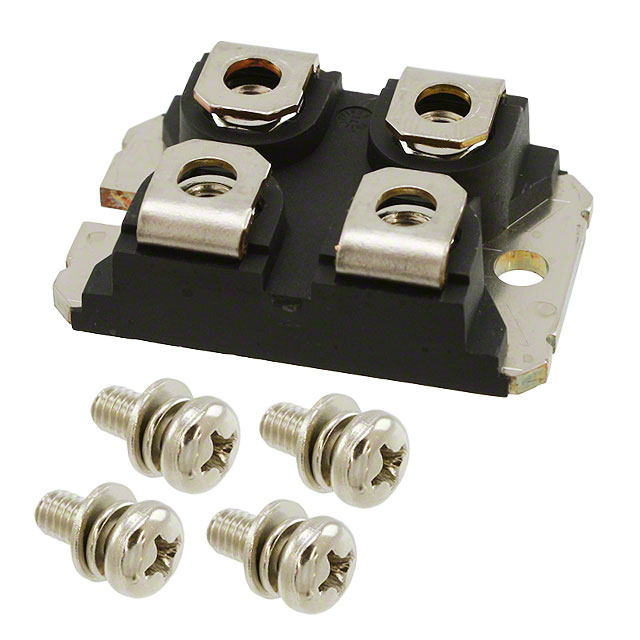

VS-GB90DA60U
|
Vishay / Semiconductor - Diodes Division | TRANSISTOR INSLTED GATE BIPOLAR | 0 | $63.05 | |
|
FP30R06KE3BOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 30A | 0 | $62.64 | |
|
MUBW20-06A7
|
IXYS | MODULE IGBT CBI E2 | 0 | $62.63 |
