RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

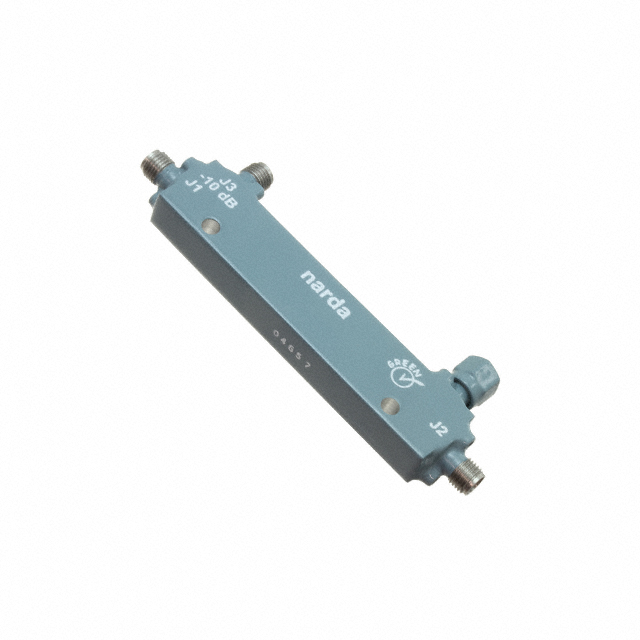

4243B-10
|
L3 Narda-MITEQ | RF DIR COUPLER 1-3.5GHZ MODULE | 10 | $814.90 | |
4243-20
|
L3 Narda-MITEQ | RF DIR COUPLER 1-3.5GHZ MODULE | 10 | $814.90 | |
4244-20
|
L3 Narda-MITEQ | RF DIR COUPLER 2GHZ-8GHZ MODULE | 10 | $774.30 | |
4244-10
|
L3 Narda-MITEQ | RF DIR COUPLER 2GHZ-8GHZ MODULE | 18 | $774.30 | |

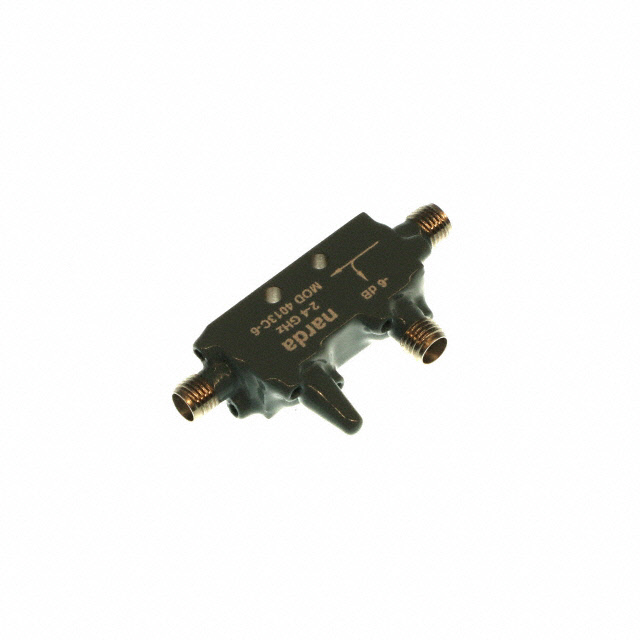

4013C-6
|
L3 Narda-MITEQ | RF DIR COUPLER 2GHZ-4GHZ MODULE | 4 | $750.30 | |
4014C-6
|
L3 Narda-MITEQ | RF DIR COUPLER 4GHZ-8GHZ MODULE | 5 | $730.48 | |
|

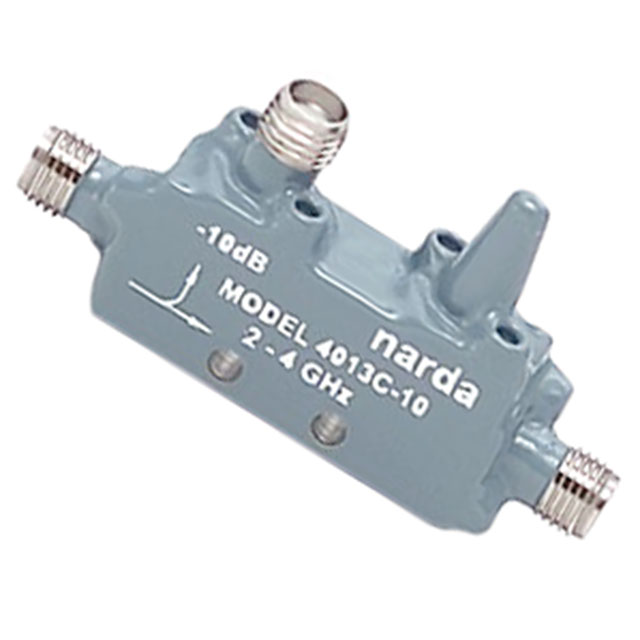

4013C-10
|
L3 Narda-MITEQ | RF DIR COUPLER 2GHZ-4GHZ MODULE | 24 | $594.75 | |
|
FPC07802
|
Knowles Dielectric Labs | DC TO 40GHZ 30DB RESISTIVE COUPL | 87 | $9.72 | |
HH-128-PIN
|
M/A-Com Technology Solutions | RF DIR COUPLER 20MHZ-2GHZ FPCASE | 12 | $161.95 | |
CX3099NL
|
Pulse Electronics Network | RF DIR COUPLER 5MHZ-1GHZ 6SMD | 904 | $2.64 |
