RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
CP0603A0836ANTR
|
AVX Corporation | RF DIR COUPLER 824-849MHZ 0603 | 274 | $0.00 | |
27000-40
|
L3 Narda-MITEQ | RF DIR COUPLER 2GHZ-18GHZ MODULE | 5 | $8415.90 | |
27000-30
|
L3 Narda-MITEQ | RF DIR COUPLER 2GHZ-18GHZ MODULE | 15 | $8415.90 | |

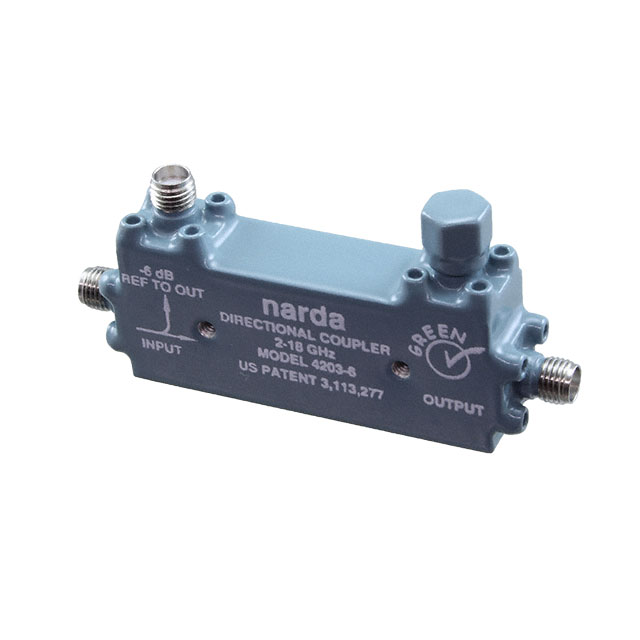

4203-6
|
L3 Narda-MITEQ | RF DIR COUPLER 2GHZ-18GHZ MODULE | 3 | $1544.40 | |

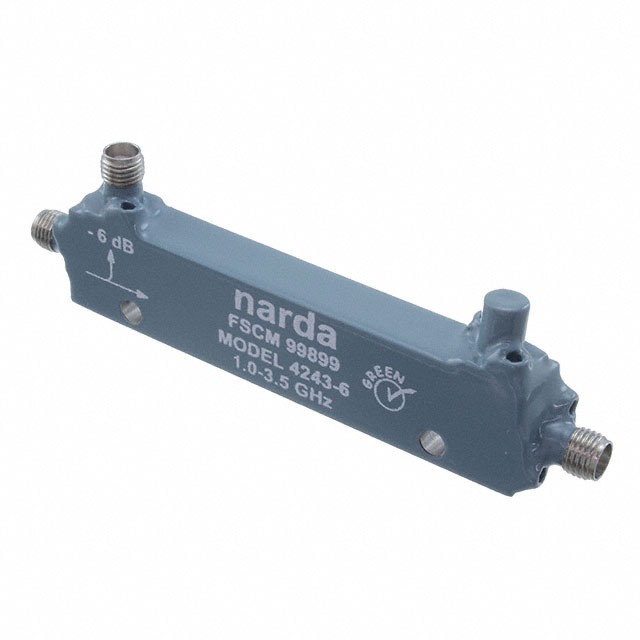

4243-6
|
L3 Narda-MITEQ | RF DIR COUPLER 1-3.5GHZ MODULE | 3 | $1264.40 | |

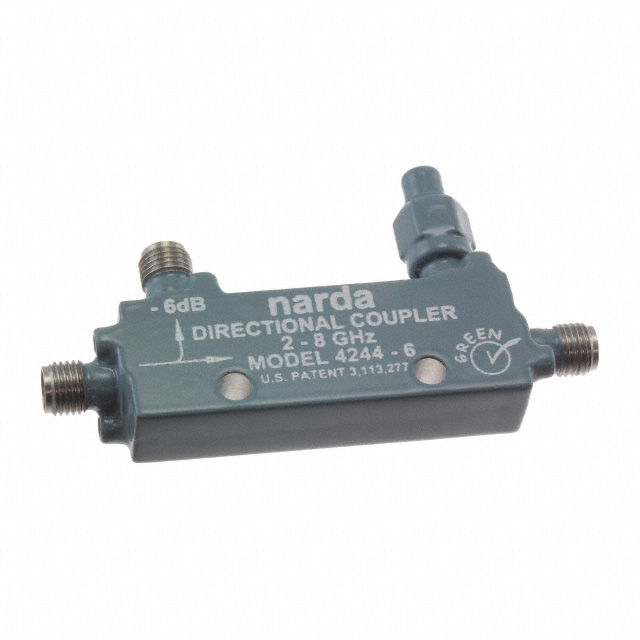

4244-6
|
L3 Narda-MITEQ | RF DIR COUPLER 2GHZ-8GHZ MODULE | 4 | $852.60 | |
4016D-6
|
L3 Narda-MITEQ | RF DIR COUPLER 12.4GHZ-18GHZ MOD | 5 | $822.15 | |
|

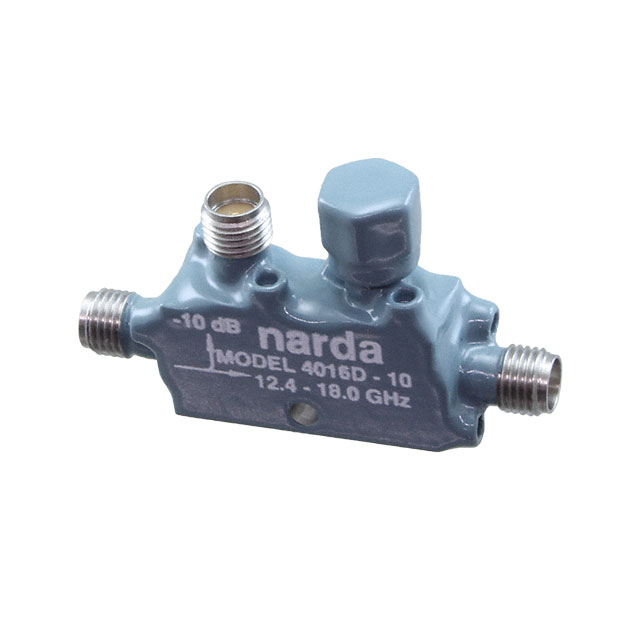

4016D-10
|
L3 Narda-MITEQ | RF DIR COUPLER 12.4GHZ-18GHZ MOD | 15 | $822.15 | |
4016C-20
|
L3 Narda-MITEQ | RF DIR COUPLER 12.4GHZ-18GHZ MOD | 15 | $822.15 | |

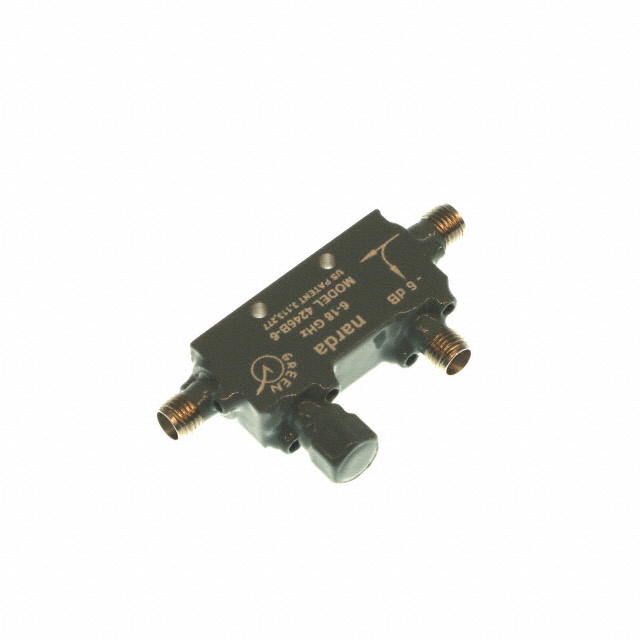

4246B-6
|
L3 Narda-MITEQ | RF DIR COUPLER 6GHZ-18GHZ MODULE | 5 | $814.90 |
