RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

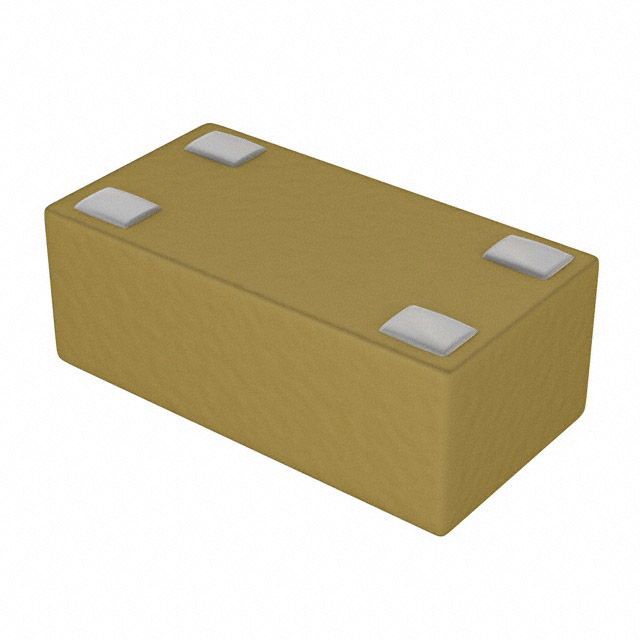

CP0402W2700FNTR
|
AVX Corporation | RF DIR COUPLR 700MHZ-2.7GHZ 0402 | 0 | $0.00 | |
1H0566-3
|
Anaren | RF DIR COUPLER 2GHZ-4GHZ | 2 | $354.83 | |
11306-3S
|
Anaren | RF DIR COUPLER 2GHZ-4GHZ SMD | 41 | $0.00 | |
X3C25P1-05S
|
Anaren | RF DIR COUPLER 2.3GHZ-2.7GHZ SMD | 95 | $0.00 | |
MACP-011010
|
M/A-Com Technology Solutions | RF DIR COUPLER 5MHZ-1.2GHZ 6SMD | 0 | $0.00 | |
MACP-011034
|
M/A-Com Technology Solutions | RF DIR COUPLER 5MHZ-1.2GHZ 6SMD | 0 | $0.00 | |
MACPCT0030
|
M/A-Com Technology Solutions | RF DIR COUPLER 5MHZ-1.2GHZ 6SMD | 0 | $0.00 | |
DB0603N2017ANTR\500
|
AVX Corporation | RF DIR COUPLR 2.01-2.025GHZ 0603 | 0 | $0.00 | |
FI168K169706-T
|
TAIYO YUDEN | RF DIR CPLR 699MHZ-2.69GHZ 0603 | 539 | $0.00 | |
EHF-4CT0835
|
Panasonic Electronic Components | RF DIR COUPLER 835MHZ 0603 | 462 | $0.81 |
