RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
DC2337J5020AHF
|
Anaren | RF DIR COUPLER 2.3-3.7GHZ 0805 | 16229 | $0.00 | |
|
C0810J5003AHF
|
Anaren | RF DIR COUPLER 800MHZ-1GHZ 0805 | 12656 | $0.00 | |
|
C5060J5003AHF
|
Anaren | RF DIR COUPLER 5GHZ-6GHZ 0805 | 16312 | $0.00 | |
|
C1720J5003AHF
|
Anaren | RF DIR COUPLER 1.7GHZ-2GHZ 0805 | 24560 | $0.00 | |

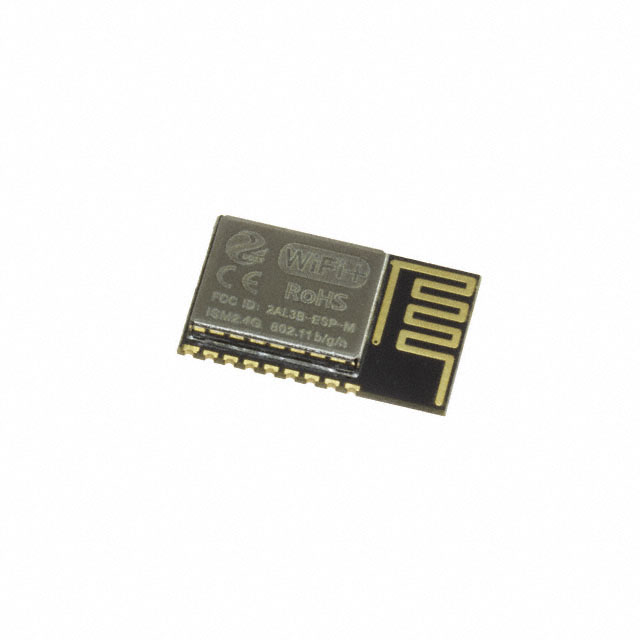

4065
|
Adafruit Industries LLC | ESP8285 SMT MODULE - ESP8266 WIT | 75 | $5.50 |
