RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

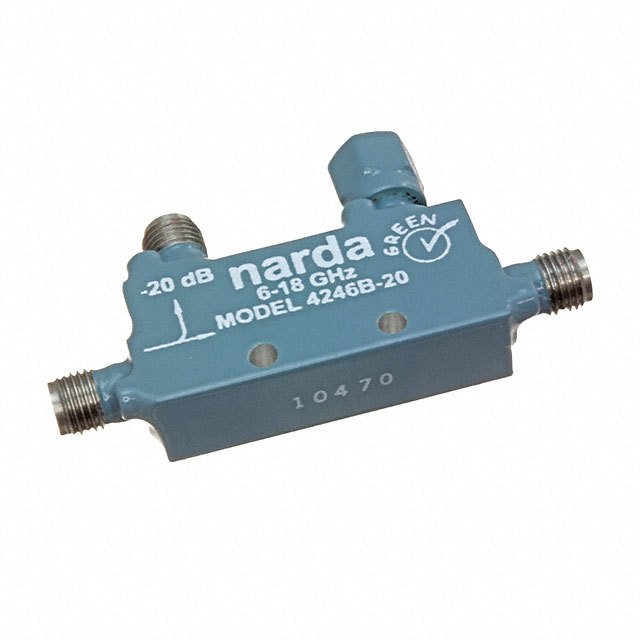

4246B-20
|
L3 Narda-MITEQ | RF DIR COUPLER 6GHZ-18GHZ MODULE | 44 | $814.90 | |
MACP-011045
|
M/A-Com Technology Solutions | 23DB COUPLER 5 - 1225 MHZ | 1695 | $0.00 | |
GLSL20D102
|
Sprague Goodman | DIRECTIONAL COUPLER 1.7GHZ 20DB | 9827 | $4.49 | |
|
MACP-011051
|
M/A-Com Technology Solutions | 7.5DB COUPLER 5 - 1225 MHZ | 1749 | $0.00 | |
|
MACP-011050
|
M/A-Com Technology Solutions | 9DB COUPLER 5 - 1225 MHZ | 1734 | $0.00 | |
|
MACP-011062
|
M/A-Com Technology Solutions | 12DB COUPLER 5 - 1225 MHZ | 1800 | $0.00 | |
MACP-011015
|
M/A-Com Technology Solutions | RF DIR COUPLR 40MHZ-1.25GHZ 5SMD | 3894 | $0.00 | |
CP0402A0836CNTR
|
AVX Corporation | RF DIR COUPLER 824-849MHZ 0402 | 9000 | $0.00 | |
|
CP0402A2655ENTR
|
AVX Corporation | RF DIR COUPLER 2655MHZ 0402 | 10000 | $0.00 | |
TFSC06054125-2120A1X
|
TDK Corporation | THIN-FILM DIRECTIONLA COUPLER FO | 17053 | $0.45 |
