RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

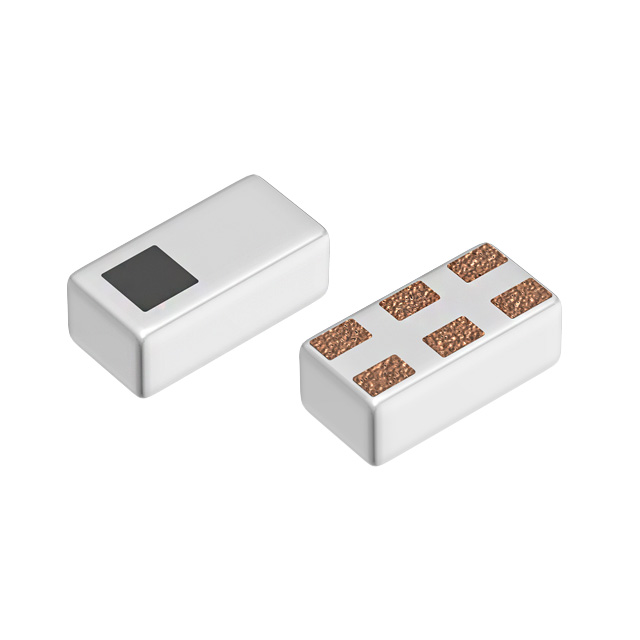

HHM22139A2
|
TDK Corporation | MULTILAYER DIRECTIONAL COUPLER F | 7432 | $0.00 | |
HHM22152A2
|
TDK Corporation | RF DIR COUPLER 450-3800MHZ 1608 | 4660 | $0.00 | |
HHM22137A2
|
TDK Corporation | RF DIR COUPLER 698-2620MHZ 0603 | 23117 | $0.24 | |
FPC06078
|
Knowles Dielectric Labs | RF DIR COUPLER 12GHZ-18GHZ SMD | 124 | $26.33 | |
FPC07182
|
Knowles Dielectric Labs | RF DIR COUPLER 20GHZ-40GHZ SMD | 170 | $10.80 | |

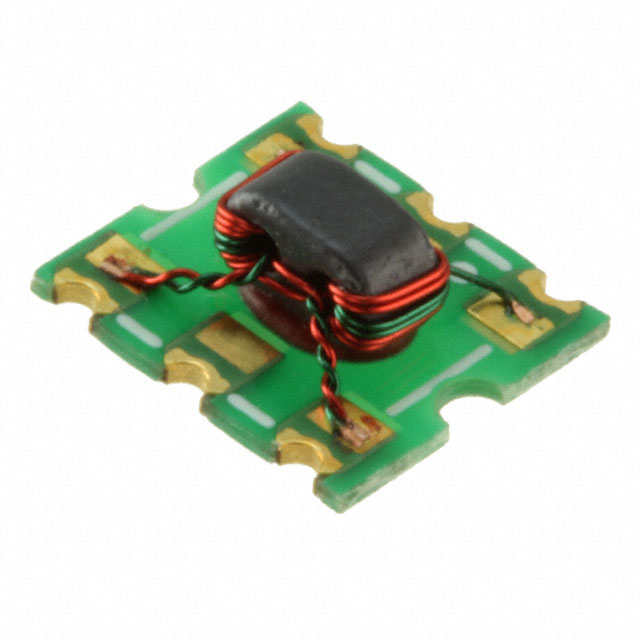

MACP-009730-C60370
|
M/A-Com Technology Solutions | RF DIR COUPLER 5MHZ-1.2GHZ MOD | 2695 | $0.00 | |
CP0302A5425ENTR
|
AVX Corporation | RF DIR COUPLER 2.4-2.5GHZ 0302 | 13240 | $0.00 | |
|
FPC06075
|
Knowles Dielectric Labs | RF DIR COUPLER 12GHZ-18GHZ SMD | 145 | $26.33 | |
FPC06881
|
Knowles Dielectric Labs | RF DIR COUPLER 40GHZ SMD | 263 | $18.90 | |
|
FPC06076
|
Knowles Dielectric Labs | RF DIR COUPLER 4GHZ-8GHZ SMD | 354 | $18.90 |
