RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

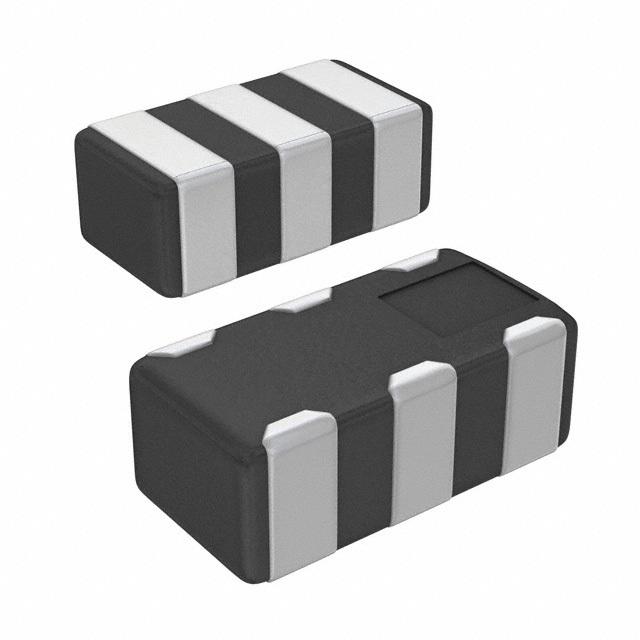

HHM22106C1
|
TDK Corporation | RF DIR CPLR 700MHZ-2.7GHZ 0603 | 7747 | $0.24 | |

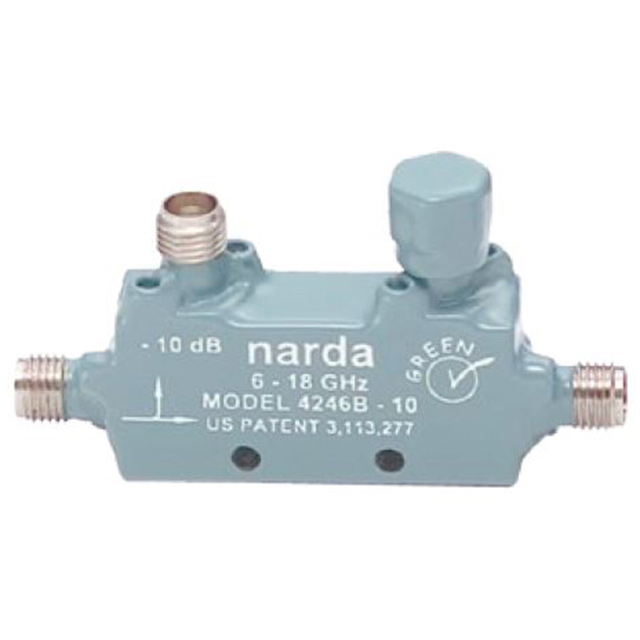

4246B-10
|
L3 Narda-MITEQ | RF DIR COUPLER 6GHZ-18GHZ MODULE | 50 | $814.90 | |
FPC06074
|
Knowles Dielectric Labs | RF DIR COUPLER 8GHZ-12GHZ SMD | 184 | $26.33 | |
FPC07180
|
Knowles Dielectric Labs | RF DIR COUPLER | 101 | $69.93 | |
|
FPC06073
|
Knowles Dielectric Labs | RF DIR COUPLER 4GHZ-8GHZ SMD | 251 | $18.90 | |
XC0900A-03S
|
Anaren | RF DIR COUPLER 811MHZ-1GHZ SMD | 11728 | $0.00 | |
XC1400P-03S
|
Anaren | RF DIR COUPLER 1.2GHZ-1.6GHZ SMD | 6740 | $0.00 | |
0910CF15B0100E
|
Johanson Technology Inc. | RF DIR COUPLER 860-960MHZ 0805 | 29743 | $0.00 | |
DC1722J5015AHF
|
Anaren | RF DIR COUPLER 1.7-2.2GHZ 0805 | 6985 | $0.00 | |
|
DC0710J5020AHF
|
Anaren | RF DIR COUPLER 700MHZ-1GHZ 0805 | 12845 | $0.00 |
