RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

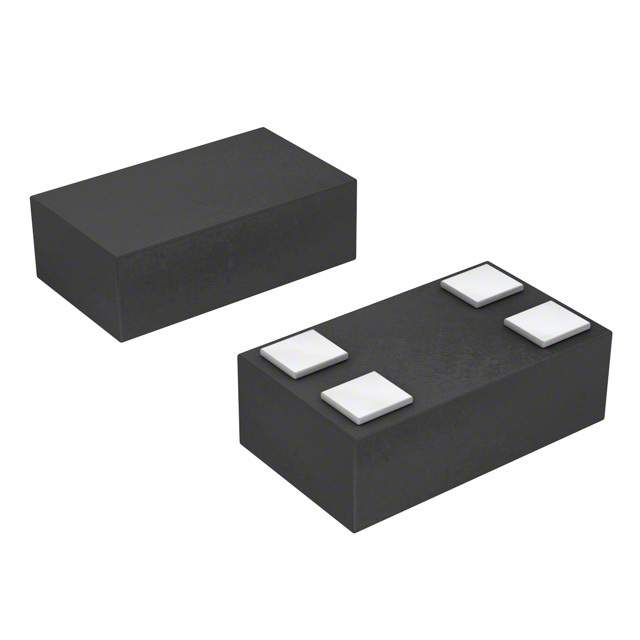

CP0402A0450ALTR
|
AVX Corporation | RF DIR COUPLER 450MHZ 0402 | 0 | $0.21 | |
|
CP0402A1950ELTR
|
AVX Corporation | RF DIR COUPLER 1.9GHZ 0402 | 0 | $0.21 | |
|
CP0402A1950FLTR
|
AVX Corporation | RF DIR COUPLER 1.9GHZ 0402 | 0 | $0.21 | |
|
CP0402A1950DLTR
|
AVX Corporation | RF DIR COUPLER 1.9GHZ 0402 | 0 | $0.21 | |
|
CP0402A1950BLTR
|
AVX Corporation | RF DIR COUPLER 1.9GHZ 0402 | 0 | $0.21 | |
|
CP0402A1950ALTR
|
AVX Corporation | RF DIR COUPLER 1.9GHZ 0402 | 0 | $0.21 | |
CP0402Q5425ENTR
|
AVX Corporation | RF DIR COUPLER 2.4-2.5GHZ 0302 | 0 | $0.00 | |
|
CP0402A1950CLTR
|
AVX Corporation | RF DIR COUPLER 1.9GHZ 0402 | 0 | $0.21 | |
CP0402A0836BLTR
|
AVX Corporation | RF DIR COUPLER 824-849MHZ 0402 | 0 | $0.21 | |
HHM2319B2
|
TDK Corporation | RF DIR COUPLER 824-915MHZ 0805 | 0 | $0.00 |
