RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
MACP-010572-TR1000
|
M/A-Com Technology Solutions | RMS POWER DETECTOR 6-18 GHZ | 705 | $0.00 | |
MACP-010571-TR1000
|
M/A-Com Technology Solutions | RMS POWER DETECTOR 2-6 GHZ | 778 | $0.00 | |

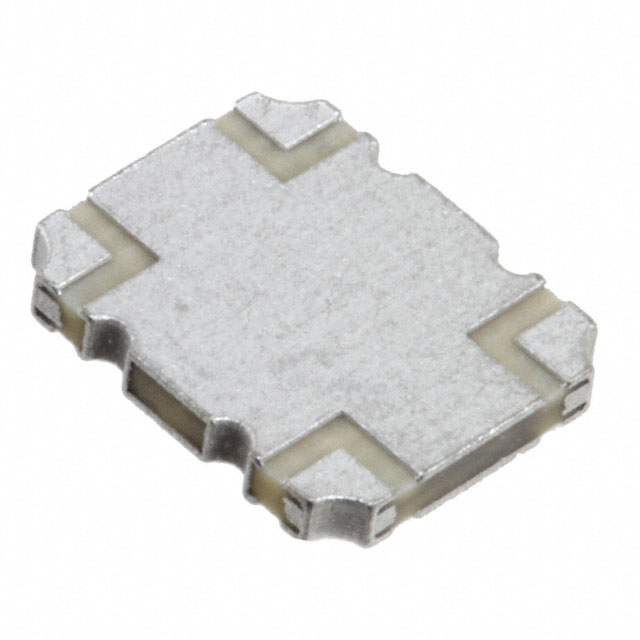

X3C19E2-20S
|
Anaren | RF DIR COUPLER 1.4GHZ-2.7GHZ SMD | 1075 | $0.00 | |
|
X3C09E2-20S
|
Anaren | RF DIR COUPLER 800MHZ-1GHZ 4SMD | 1800 | $0.00 | |
X3C09P2-30S
|
Anaren | RF DIR COUPLER 800MHZ-1GHZ 4SMD | 1646 | $0.00 | |
X3C26P1-30S
|
Anaren | RF DIR COUPLER 2.3GHZ-2.9GHZ SMD | 2624 | $0.00 | |
X3C19P2-30S
|
Anaren | RF DIR COUPLER 1.4GHZ-2.7GHZ SMD | 4230 | $0.00 | |
11305-3S
|
Anaren | RF DIR COUPLER 1GHZ-2GHZ SMD | 1330 | $0.00 | |
X3C21P1-05S
|
Anaren | RF DIR COUPLER 2GHZ-2.3GHZ SMD | 1167 | $0.00 | |
PC2025A2700AT002
|
AVX Corporation | RF DIR COUPLER 2.1-2.7GHZ 2520 | 238 | $0.00 |
