IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
APTGF90DH60TG
|
Microsemi Corporation | IGBT MODULE NPT ASYM BRIDGE SP4 | 0 | $0.00 | |
|
APTGF90DA60TG
|
Microsemi Corporation | IGBT 600V 110A 416W SP4 | 0 | $0.00 | |
|

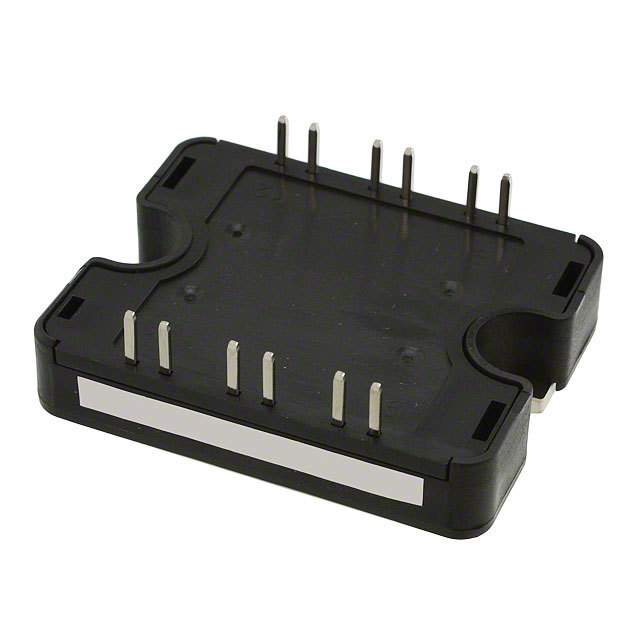

APTGF90DA60T1G
|
Microsemi Corporation | IGBT 600V 110A 416W SP1 | 0 | $0.00 | |
|
APTGF90A60TG
|
Microsemi Corporation | IGBT MODULE NPT PHASE LEG SP4 | 0 | $0.00 | |
APTGF90A60T1G
|
Microsemi Corporation | POWER MOD IGBT NPT PHASE LEG SP1 | 0 | $0.00 | |
|
APTGF75SK60D1G
|
Microsemi Corporation | IGBT 600V 100A 355W D1 | 0 | $0.00 | |

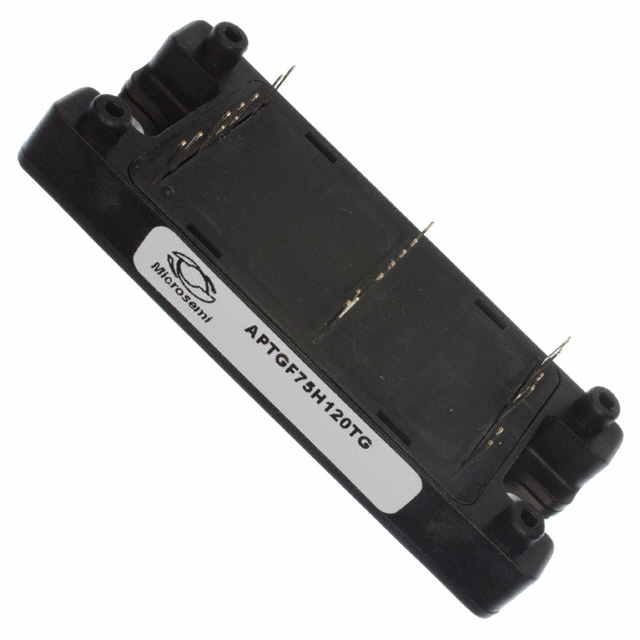

APTGF75H120TG
|
Microsemi Corporation | POWER MODULE IGBT 1200V 75A SP4 | 0 | $0.00 | |
APTGF75DSK120TG
|
Microsemi Corporation | IGBT MODULE NPT BUCK CHOP SP4 | 0 | $0.00 | |
|
APTGF75DH120TG
|
Microsemi Corporation | IGBT MODULE NPT ASYM BRIDGE SP4 | 0 | $0.00 | |
|
APTGF75DDA120TG
|
Microsemi Corporation | IGBT MODULE NPT BOOST CHOP SP4 | 0 | $0.00 |
