IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
CM450DX-24S1
|
Powerex, Inc. | IGBT MOD NX 450A 1200V DUAL | 0 | $0.00 | |
|
CM300DX-24S1
|
Powerex, Inc. | IGBT MOD NX 300A 1200V DUAL | 0 | $0.00 | |

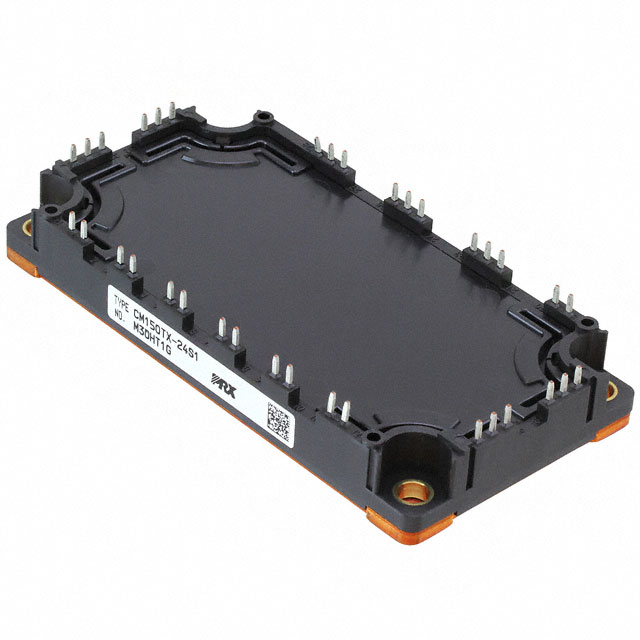

CM150TX-24S1
|
Powerex, Inc. | IGBT MOD NX 150A 1200V 6-PAC | 0 | $0.00 | |
MIXA20WB1200TMH
|
IXYS | IGBT MODULE 1200V 20A HEX | 0 | $0.00 | |
|
MIXA20W1200TMH
|
IXYS | IGBT MODULE 1200V 28A HEX | 0 | $0.00 | |
|
MIXA10WB1200TMH
|
IXYS | IGBT MODULE 1200V 12A HEX | 0 | $0.00 | |
|
MIXA10W1200TMH
|
IXYS | IGBT MODULE 1200V 12A HEX | 0 | $0.00 | |
|
APTGF50DA120CT1G
|
Microsemi Corporation | MOD IGBT NPT SIC CHOPPER SP1 | 0 | $0.00 | |
|
APTGT75A1202G
|
Microsemi Corporation | MOD IGBT 1200V 110A SP2 | 0 | $0.00 | |
|
APTGT30TL60T3G
|
Microsemi Corporation | MOD IGBT 600V 50A SP3 | 0 | $0.00 |
