IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
IRG5K100HF06A
|
Infineon Technologies | MOD IGBT 600V 100A POWIR 34 | 0 | $0.00 | |
MG12300D-BA1MM
|
Littelfuse Inc. | IGBT 1200V 450A 1800W PKG D | 0 | $0.00 | |
|
QID1215003
|
Powerex, Inc. | MOD IGBT 1200V 105A | 0 | $0.00 | |
|
QID1210007
|
Powerex, Inc. | MOD IGBT 1200V 100A | 0 | $0.00 | |
|
QID1210006
|
Powerex, Inc. | MOD IGBT 1200V 100A SPLIT SI/SIC | 0 | $0.00 | |
|
QID1210005
|
Powerex, Inc. | MOD IGBT 1200V 100A SPLIT SI/SIC | 0 | $0.00 | |
|
VS-GT75NP120N
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 150A 446W INT-A-PAK | 0 | $0.00 | |
|
VS-GT400TH120U
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 750A 2344W DIAP | 0 | $0.00 | |
|
VS-GT400TH120N
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 600A 2119W DIAP | 0 | $0.00 | |

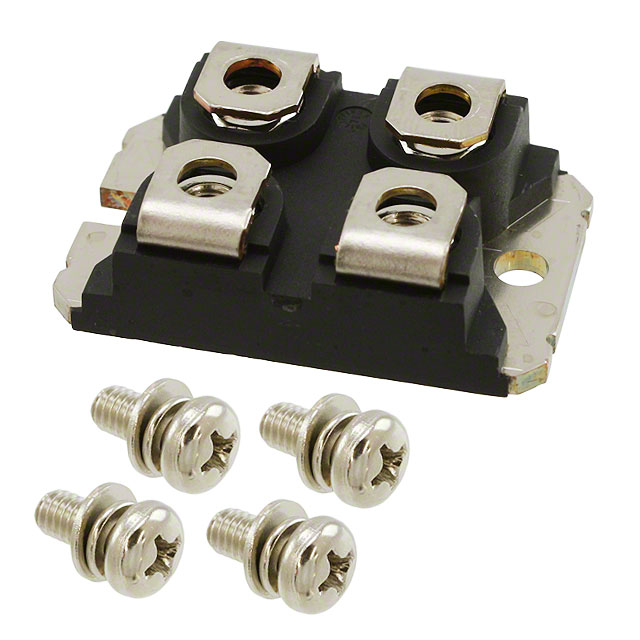

VS-GT175DA120U
|
Vishay / Semiconductor - Diodes Division | IGBT 1200V 288A 1087W SOT-227 | 0 | $0.00 |
