IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
F450R12KS4B11BOSA1
|
Infineon Technologies | IGBT MODULE VCES 650V 50A | 0 | $95.61 | |
|
VS-GT200TP065N
|
Vishay / Semiconductor - Diodes Division | IGBT | 0 | $95.44 | |
|
FP50R12KT4BOSA1
|
Infineon Technologies | IGBT MODULE VCES 600V 50A | 0 | $95.38 | |
|
GSID200A120S3B1
|
Global Power Technologies Group | SILICON IGBT MODULES | 0 | $93.42 | |
|
DDB6U180N16RRB11BPSA1
|
Infineon Technologies | DIODE MOD CHOPPER-IGBT 1600V 60A | 0 | $92.77 | |
|
FF150R12ME3GBOSA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 150A | 0 | $92.40 | |
|
FD200R12KE3HOSA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 200A | 0 | $92.29 | |
|
DF200R12KE3HOSA1
|
Infineon Technologies | IGBT MODULE VCES 1200V 200A | 0 | $92.29 | |

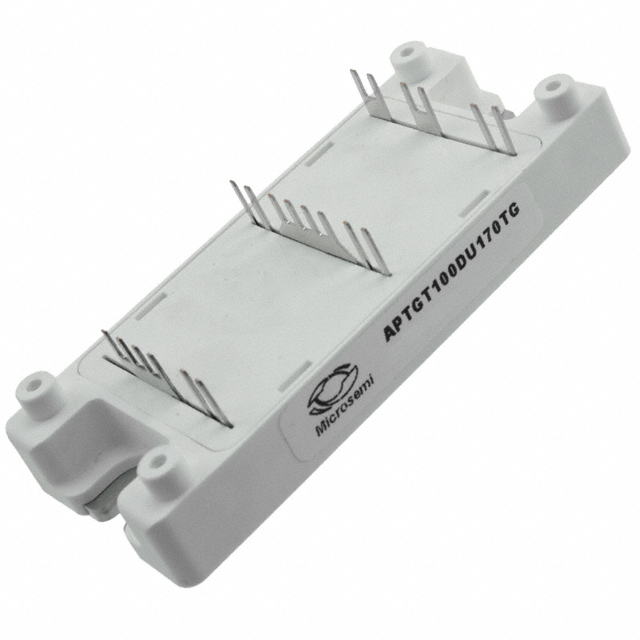

APTGT100DU170TG
|
Microsemi Corporation | IGBT DUAL SOURCE 1700V 150A SP4 | 1 | $91.62 | |

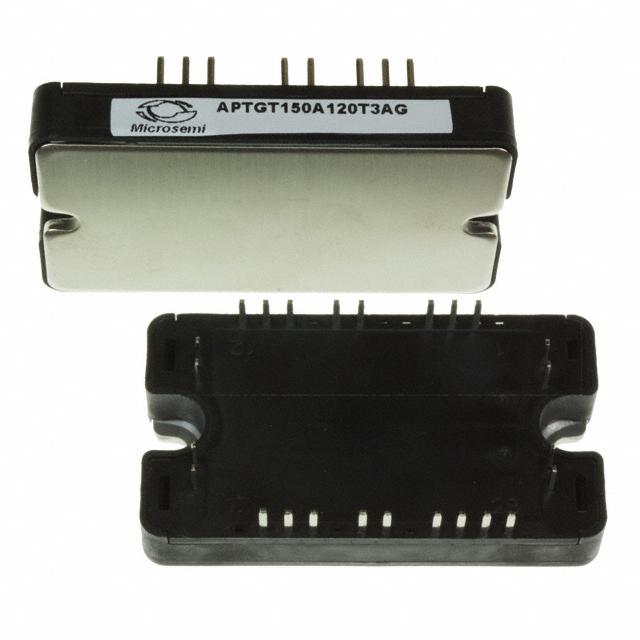

APTGT150A120T3AG
|
Microsemi Corporation | IGBT ARRAY 1200V 220A 833W SP3 | 0 | $91.30 |
