IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
MID300-12A4
|
IXYS | MOD IGBT RBSOA 1200V 330A Y3-DCB | 0 | $98.19 | |
|
DF160R12W2H3FB11BPSA1
|
Infineon Technologies | MOD DIODE BRIDGE EASY2B-2-1 | 0 | $98.11 | |
|

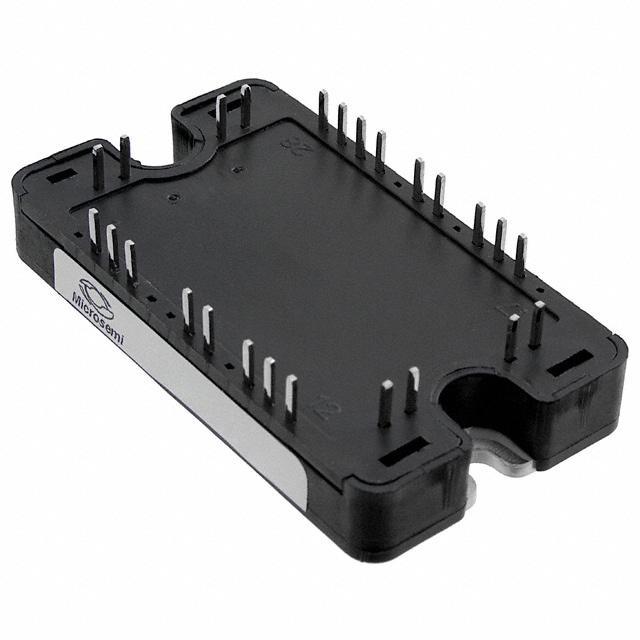

APTGT150A120TG
|
Microsemi Corporation | IGBT MODULE TRENCH PHASE LEG SP4 | 0 | $97.78 | |
APTGT150DU120TG
|
Microsemi Corporation | IGBT MOD TRENCH DUAL SOURCE SP4 | 0 | $97.59 | |
|
MWI50-12A7
|
IXYS | MOD IGBT SIXPACK RBSOA 1200V E2 | 0 | $97.41 | |
APTGT100A170TG
|
Microsemi Corporation | POWER MOD IGBT TRENCH PH LEG SP4 | 0 | $96.65 | |
|
BSM100GB120DN2KHOSA1
|
Infineon Technologies | IGBT 2 MED POWER 34MM-1 | 0 | $96.65 | |
CM225DX-24S1
|
Powerex, Inc. | IGBT MOD NX 225A 1200V DUAL | 1 | $96.31 | |

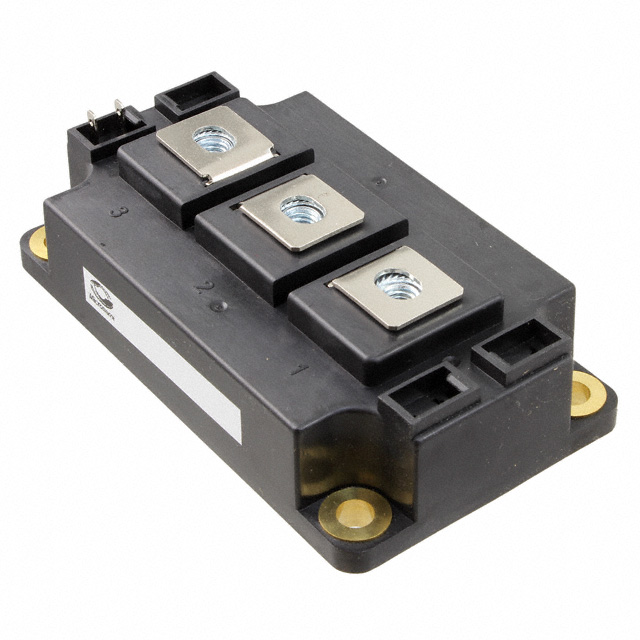

APTGT400DA60D3G
|
Microsemi Corporation | IGBT 600V 500A 1250W D3 | 0 | $96.25 | |
|
FZ400R12KP4HOSA1
|
Infineon Technologies | MOD IGBT MED PWR 62MM-2 | 0 | $95.61 |
