IGBT Modules
Insulated-gate bipolar transistors (IGBTs) are three-terminal power semiconductor devices primarily used as electronic switches that combine high efficiency and fast switching. As modules, IGBTs are configured as asymmetrical bridges, boost, buck and brake choppers, full-bridge, three-level and three-phase inverters. Some have built-in NTC thermistors for temperature monitoring. IGBT modules are differentiated by max power, collector current, collector-emitter breakdown voltage and configuration.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
2ED300C17STROHSBPSA1
|
Infineon Technologies | IGBT MODULE 1700V 30A | 0 | $173.26 | |
|
FS150R12PT4BOSA1
|
Infineon Technologies | IGBT MODULE VCES 650V 150A | 0 | $171.90 | |
|
FS150R12KT3BOSA1
|
Infineon Technologies | IGBT MODULE 1200V 200A CHASS MNT | 0 | $181.02 | |
|
F3L300R12MT4PB23BPSA1
|
Infineon Technologies | MEDIUM POWER ECONO | 0 | $180.74 | |
|
F3L300R12MT4PB22BPSA1
|
Infineon Technologies | MEDIUM POWER ECONO | 0 | $180.74 | |
|
APTGLQ300H65G
|
Microsemi Corporation | PWR MOD IGBT4 650V 600A SP6 | 0 | $194.82 | |
|
APTGT300H60G
|
Microsemi Corporation | IGBT MOD TRENCH FULL BRIDGE SP6 | 0 | $194.80 | |
|
BSM150GB170DLCHOSA1
|
Infineon Technologies | IGBT 2 MED POWER 62MM-1 | 0 | $194.16 | |
APTGL475A120D3G
|
Microsemi Corporation | POWER MOD IGBT4 PHASE LEG D3 | 0 | $212.33 | |

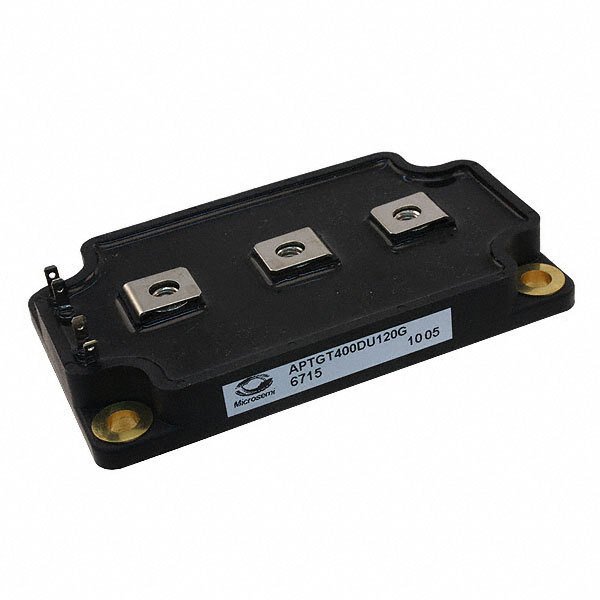

APTGT400DU120G
|
Microsemi Corporation | IGBT TRENCH DUAL SRC 1200V SP6 | 0 | $211.43 |
