RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

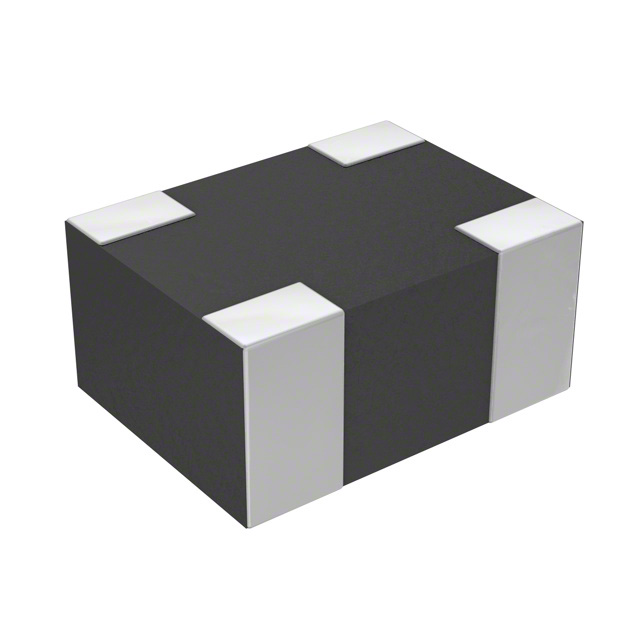

CP0805B1960BWTR
|
AVX Corporation | RF DIR COUPLER 1.93-1.99GHZ 0805 | 0 | $0.35 | |
|
CP0805B1975CWTR
|
AVX Corporation | RF DIR COUPLER 1.975GHZ 0805 | 0 | $0.35 | |
1P503AS
|
Anaren | RF DIR COUPLER 1.7GHZ-2GHZ SMD | 0 | $1.11 | |
DB0805A2017ASTR\500
|
AVX Corporation | RF DIR COUPLR 2.01-2.025GHZ 0805 | 0 | $0.88 | |
|
DB0805A2017ASTR
|
AVX Corporation | RF DIR COUPLR 2.01-2.025GHZ 0805 | 0 | $0.68 | |
|
XC2100E-03S
|
Anaren | RF DIR COUPLER 2GHZ-2.3GHZ SMD | 0 | $1.64 | |
|
XC1900E-03S
|
Anaren | RF DIR COUPLER 1.7GHZ-2GHZ SMD | 0 | $1.64 | |
|
XC3500M-03S
|
Anaren | RF DIR COUPLER 3.3GHZ-3.8GHZ SMD | 0 | $1.56 | |
|
X3C30F1-20S
|
Anaren | RF DIR COUPLER 2GHZ-4GHZ SMD | 0 | $1.54 | |
|
XC2500E-20S
|
Anaren | RF DIR COUPLER 2.3-2.7GHZ 0502 | 0 | $2.27 |
