RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

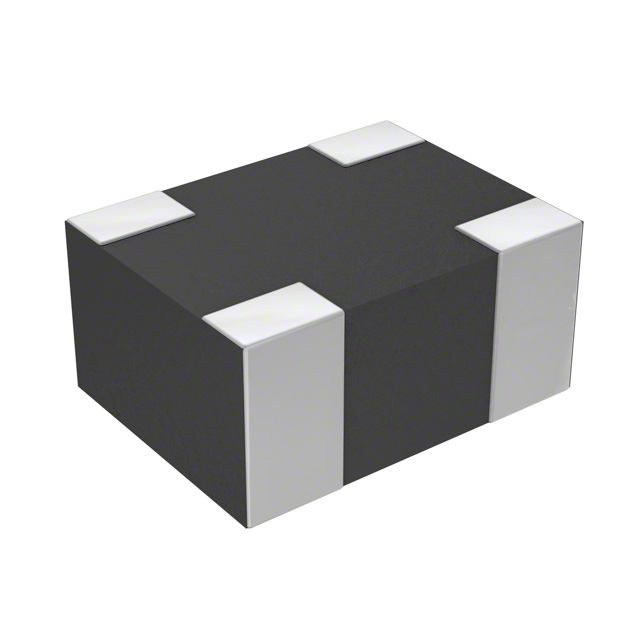

CP0805A0836CWTR
|
AVX Corporation | RF DIR COUPLER 824-849MHZ 0805 | 0 | $0.35 | |
|
CP0805A0836BWTR
|
AVX Corporation | RF DIR COUPLER 824-849MHZ 0805 | 0 | $0.35 | |
|
CP0805A0836AWTR
|
AVX Corporation | RF DIR COUPLER 824-849MHZ 0805 | 0 | $0.35 | |
|
CP0805A1720BWTR
|
AVX Corporation | RF DIR COUPLER 1.72GHZ 0805 | 0 | $0.35 | |
|
CP0805A1615BWTR
|
AVX Corporation | RF DIR COUPLER 1.615GHZ 0805 | 0 | $0.35 | |
|
CP0805A1550AWTR
|
AVX Corporation | RF DIR COUPLER 1.55GHZ 0805 | 0 | $0.35 | |
|
CP0805B0942AWTR
|
AVX Corporation | RF DIR COUPLER 925-960MHZ 0805 | 0 | $0.35 | |
|
CP0805B0902CWTR
|
AVX Corporation | RF DIR COUPLER 890-915MHZ 0805 | 0 | $0.35 | |
|
CP0805B0902BWTR
|
AVX Corporation | RF DIR COUPLER 890-915MHZ 0805 | 0 | $0.35 | |
|
CP0805B1960CWTR
|
AVX Corporation | RF DIR COUPLER 1.93-1.99GHZ 0805 | 0 | $0.35 |
