RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

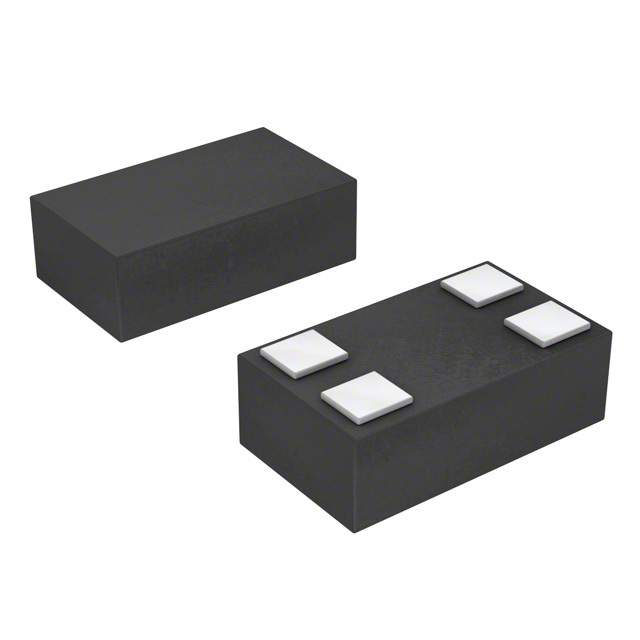

CP0402A1960ELTR
|
AVX Corporation | RF DIR COUPLER 1.93-1.99GHZ 0402 | 0 | $0.21 | |

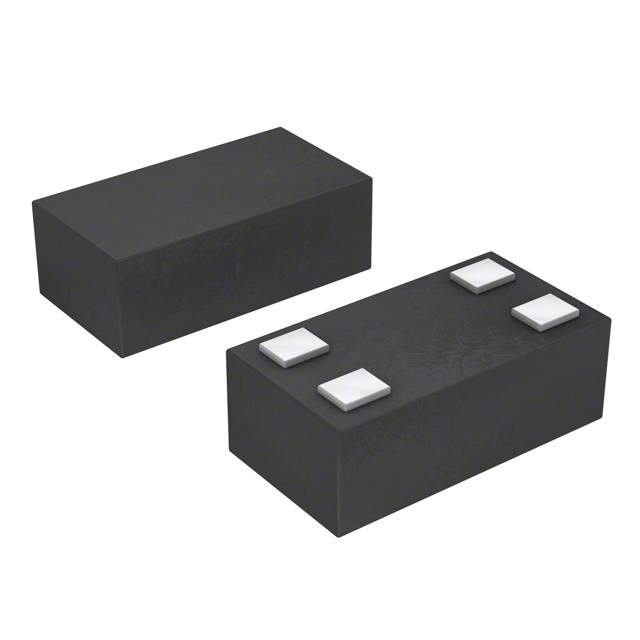

CP0603A0836HNTR
|
AVX Corporation | RF DIR COUPLER 824-849MHZ 0603 | 0 | $0.22 | |
|
CP0603A0836HLTR
|
AVX Corporation | RF DIR COUPLER 824-849MHZ 0603 | 0 | $0.22 | |
|
CP0603A1180BLTR
|
AVX Corporation | RF DIR COUPLER 1.18GHZ 0603 | 0 | $0.22 | |
|
CP0603A0976CLTR
|
AVX Corporation | RF DIR COUPLER 976MHZ 0603 | 0 | $0.22 | |
|
CP0603A1960DNTR
|
AVX Corporation | RF DIR COUPLER 1.93-1.99GHZ 0603 | 0 | $0.22 | |
|
CP0603A1960BNTR
|
AVX Corporation | RF DIR COUPLER 1.93-1.99GHZ 0603 | 0 | $0.22 | |
|
CP0603A1960BLTR
|
AVX Corporation | RF DIR COUPLER 1.93-1.99GHZ 0603 | 0 | $0.22 | |
|
CP0603A0836AWTR
|
AVX Corporation | RF DIR COUPLER 824-849MHZ 0603 | 0 | $0.24 | |
|
CP0603A0460AWTR
|
AVX Corporation | RF DIR COUPLER 460MHZ 0603 | 0 | $0.24 |
