RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

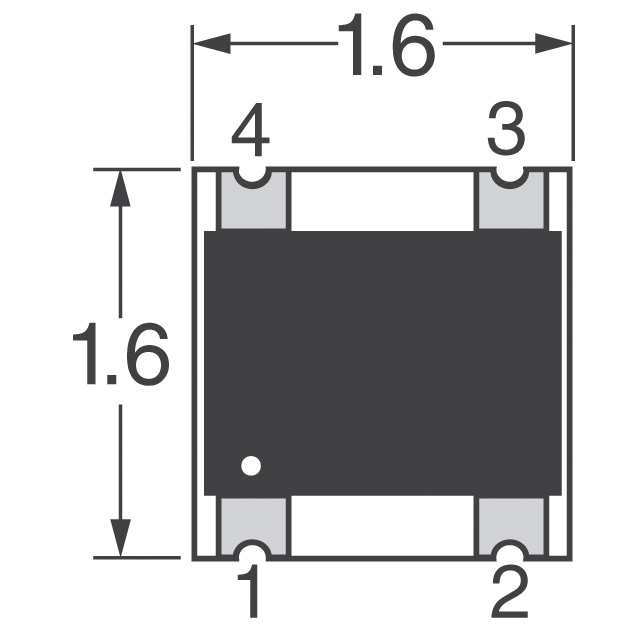

EHF-FD1541
|
Panasonic Electronic Components | RF DIR COUPLER 1.8GHZ-2GHZ 0606 | 4000 | $0.48 | |

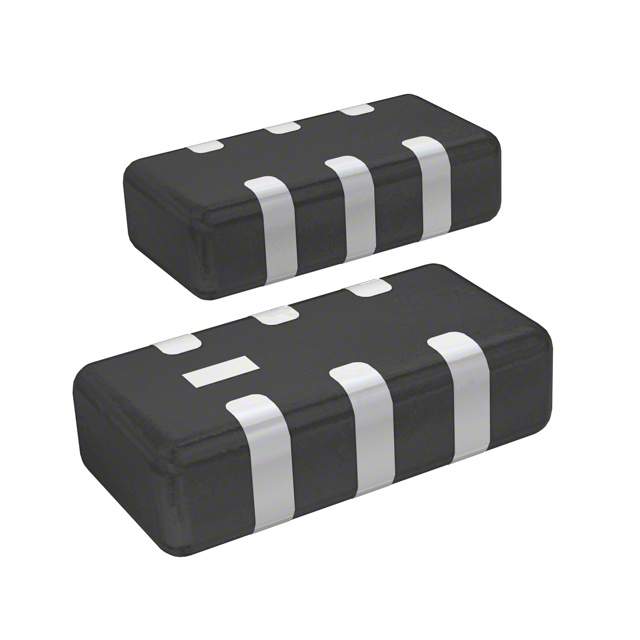

DXP18CN7515TL
|
Murata Electronics | RF DIR COUPLER 50MHZ-870MHZ 0603 | 0 | $0.30 | |
X3C19F1-03S
|
Anaren | COUPLER HYBRID 1.7GHZ-2.3GHZ SMD | 3138 | $0.00 | |
XC2100A-20S
|
Anaren | RF DIR COUPLER 2GHZ-2.3GHZ SMD | 953 | $0.00 | |
FPC06700
|
Knowles Dielectric Labs | RF DIR COUPLER | 10 | $35.10 | |

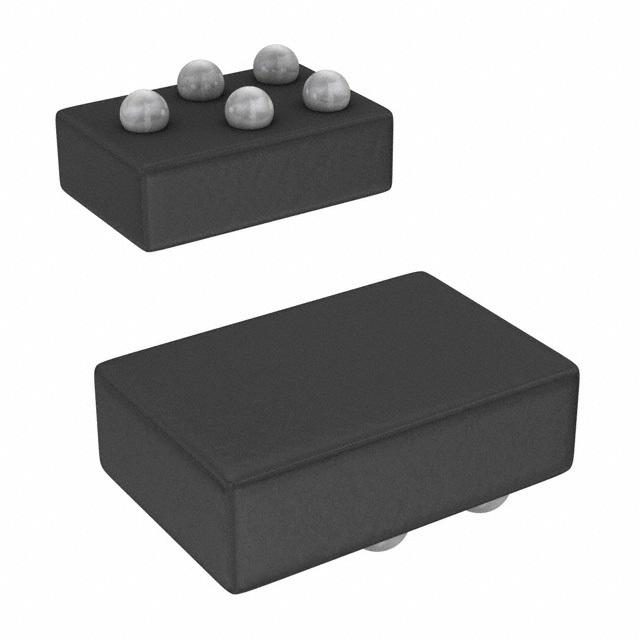

CPL-WBF-00D3
|
STMicroelectronics | RF DIR COUPLER 698MHZ-2.7GHZ BGA | 219 | $0.00 | |
10616-20
|
Anaren | RF DIR COUPLER 2GHZ-4GHZ | 4 | $641.25 | |
CP0603A0902CNTR
|
AVX Corporation | RF DIR COUPLER 890-915MHZ 0603 | 37 | $0.00 | |
CP0402A0942ALTR
|
AVX Corporation | RF DIR COUPLER 925-960MHZ 0402 | 0 | $0.21 | |
|
CP0402A2140ELTR
|
AVX Corporation | RF DIR COUPLER 2.14GHZ 0402 | 0 | $0.21 |
