RF Directional Coupler
RF Directional Couplers are designed to couple a specific amount of electromagnetic power in a transmission line to a secondary line enabling the signal to be used in another circuit. The coupler types are Coupler-with Filter, Dual Band-Dual Path, and Standard with frequencies ranging from DC to 40 GHz. The coupling factor ranges from -20 dB to 49 dB with applications being AGSM, AMPS, CDMA, Cellular, DCS, DECT, E-GSM, General Purpose, GSM, LTE, Military, PCN, PCS, PDC, PHP, S-Band Radar, Telecom, W-CDMA, Wireless LAN, WLAN, and X-Band Radar.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
CPL-5217-20-SMA-79
|
Cinch Connectivity Solutions Midwest Microwave | RF DIR COUPLER 12.4GHZ-18GHZ | 0 | $540.00 | |
|
EHF-FD1736
|
Panasonic Electronic Components | RF DIR COUPLER 800MHZ | 0 | $0.00 | |
EHF-FD1824
|
Panasonic Electronic Components | RF DIR COUPLER 880-915MHZ 0805 | 0 | $0.00 | |
|
EHF-FD1812D
|
Panasonic Electronic Components | RF DIR COUPLER 880-915MHZ 0805 | 0 | $0.00 | |

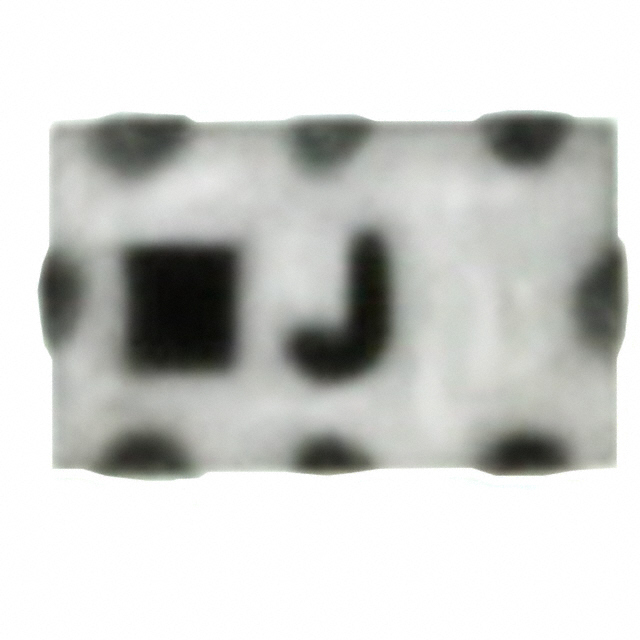

0898CF15A035E
|
Johanson Technology Inc. | RF DIR COUPLER 880-915MHZ 0805 | 0 | $0.00 | |
0898CD15C1748E
|
Johanson Technology Inc. | RF DIR COUPLER 880-915MHZ 0805 | 0 | $0.00 | |

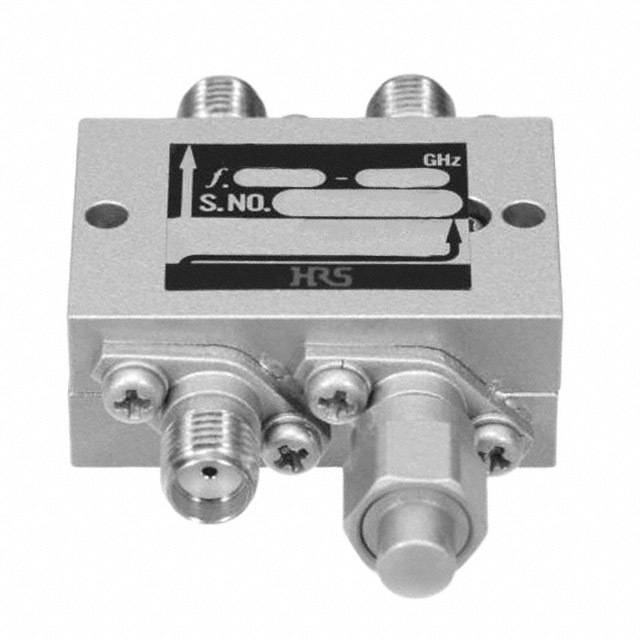

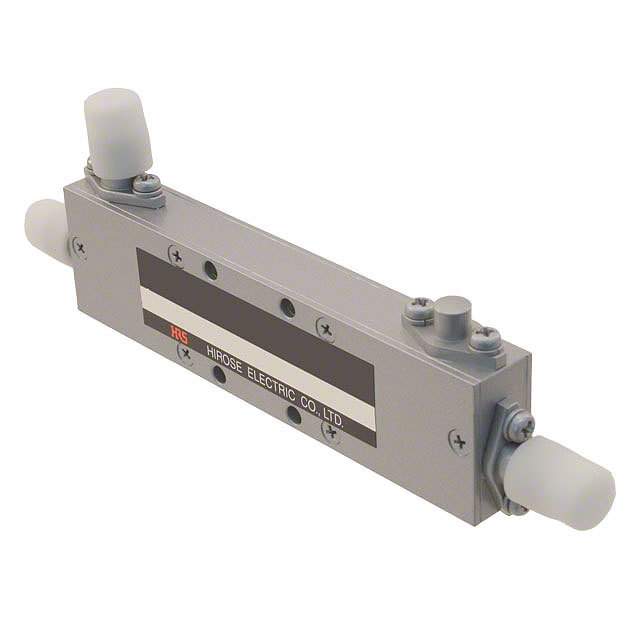

HDH-01503GH(40)
|
Hirose Electric Co Ltd | RF DIR COUPLER 1.5GHZ | 0 | $0.00 | |
|
HDH-00803GHD(40)
|
Hirose Electric Co Ltd | RF DIR COUPLER 750MHZ | 0 | $0.00 | |
HDH-00820GID(40)
|
Hirose Electric Co Ltd | RF DIR COUPLER 750MHZ | 0 | $0.00 | |
|
HDH-09020GID(40)
|
Hirose Electric Co Ltd | RF DIR COUPLER 9GHZ | 0 | $0.00 |
