Balun
A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|
1600BL15B050E
|
Johanson Technology Inc. | BALUN 1.5GHZ-1.7GHZ 50/50 0805 | 16937 | $0.00 | |
0900BL15C050E
|
Johanson Technology Inc. | BALUN 800MHZ-1GHZ 50/50 0805 | 116851 | $0.00 | |
2450BM15A0002E
|
Johanson Technology Inc. | BALUN 2.4GHZ-2.5GHZ 0805 | 174357 | $0.00 | |
ATB2012-50011-T000
|
TDK Corporation | BALUN 40MHZ-860MHZ 50/50 0805 | 19888 | $0.00 | |
0850BM14E0016T
|
Johanson Technology Inc. | BALUN 770MHZ-928MHZ 50/50 0603 | 45460 | $0.00 | |

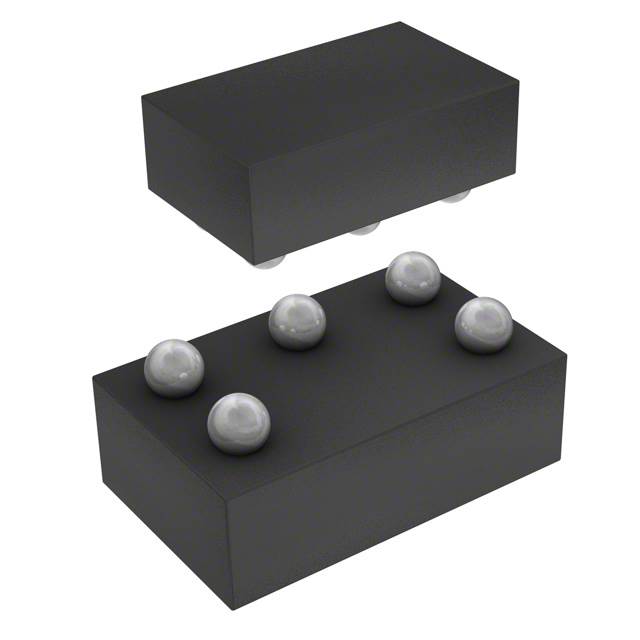

BAL-NRF02D3
|
STMicroelectronics | BALUN 2.4-2.54GHZ 5UFBGA CSPBGA | 85256 | $0.00 | |
BALF-NRF01D3
|
STMicroelectronics | BALUN 2.4GHZ-2.5GHZ 50/50 5UFBGA | 25184 | $0.00 | |
HHM1522B1
|
TDK Corporation | BALUN 880MHZ-960MHZ 50/50 0805 | 14094 | $0.00 | |
|
HHM1595A1
|
TDK Corporation | BALUN 3GHZ-8GHZ 50/100 0805 | 73837 | $0.00 | |
|
2450BM14G0011T
|
Johanson Technology Inc. | BALUN 2.4GHZ-2.5GHZ 0603 | 64724 | $0.50 |
