Balun
A Balun is a device designed to connect two circuits by converting or unconverting balanced and unbalanced loads. The characteristics are frequency range, impedance -unbalanced/balanced, phase difference, insertion loss, and return loss. The frequency range is from 10kHz to 23.6GHz with an impedance from 1:1 to 100/100Ohm and a phase difference from -155° ±15° to 195°.
| Part Number | Manufacturer | Description | Quantity | Price | Option |
|---|---|---|---|---|---|

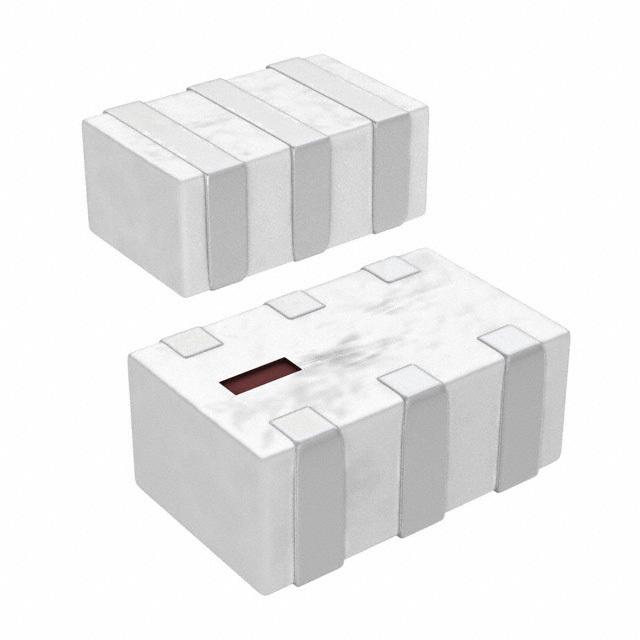

2450BM14E0003T
|
Johanson Technology Inc. | BALUN 2.4GHZ-2.5GHZ 0603 | 108000 | $0.25 | |

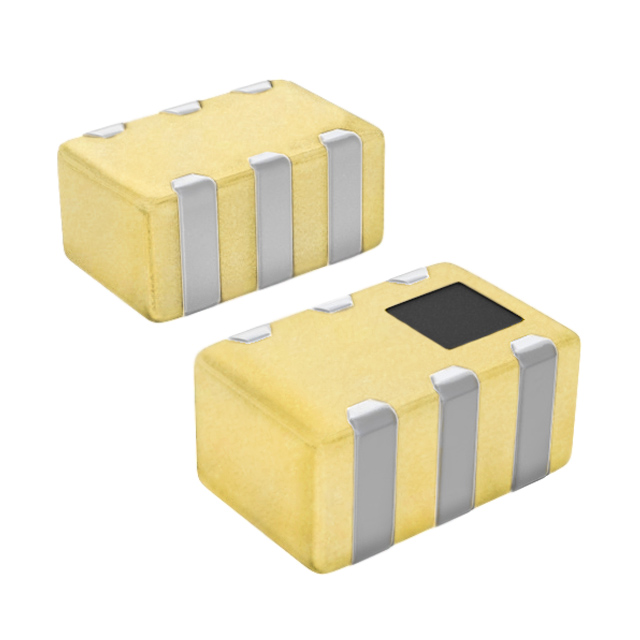

0868BM15C0001E
|
Johanson Technology Inc. | BALUN 863MHZ-873MHZ 0805 | 107849 | $0.73 | |

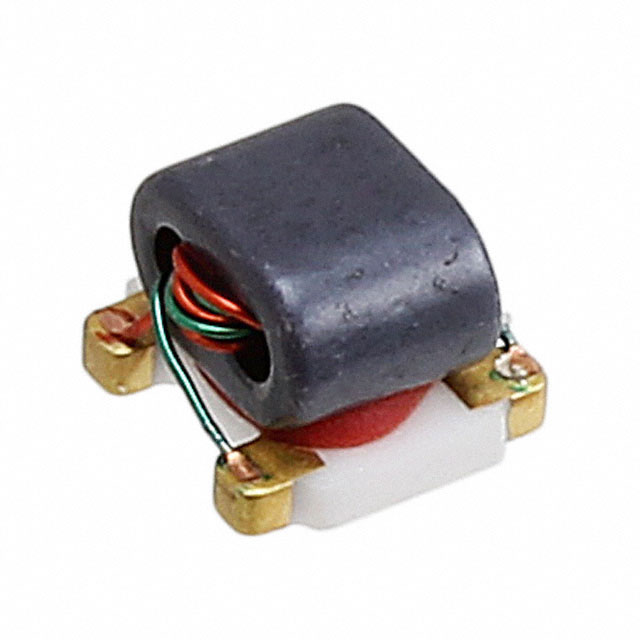

MABA-007159-000000
|
M/A-Com Technology Solutions | BALUN 4.5MHZ-3GHZ 1:1 6SMD FLAT | 28000 | $0.87 | |
2450BL15B050E
|
Johanson Technology Inc. | BALUN 2.4GHZ-2.5GHZ 50/50 0805 | 38206 | $0.36 | |

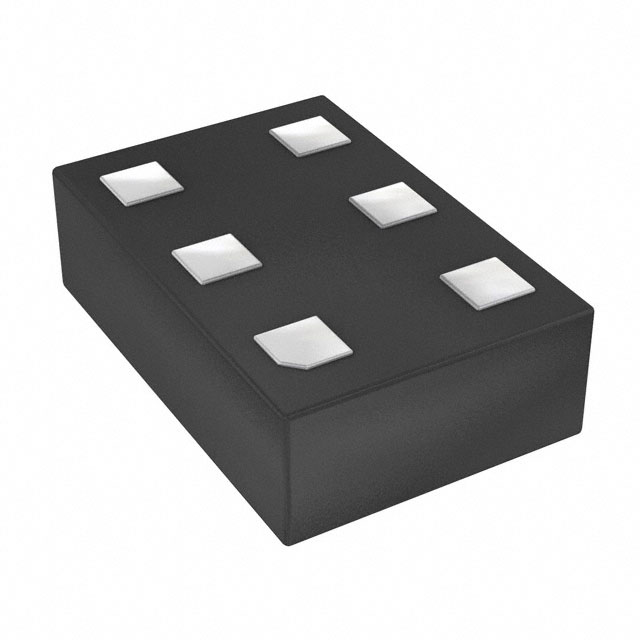

BALF-NRF01E3
|
STMicroelectronics | BALUN 2.4GHZ-2.54GHZ 6XFLGA | 70910 | $0.00 | |

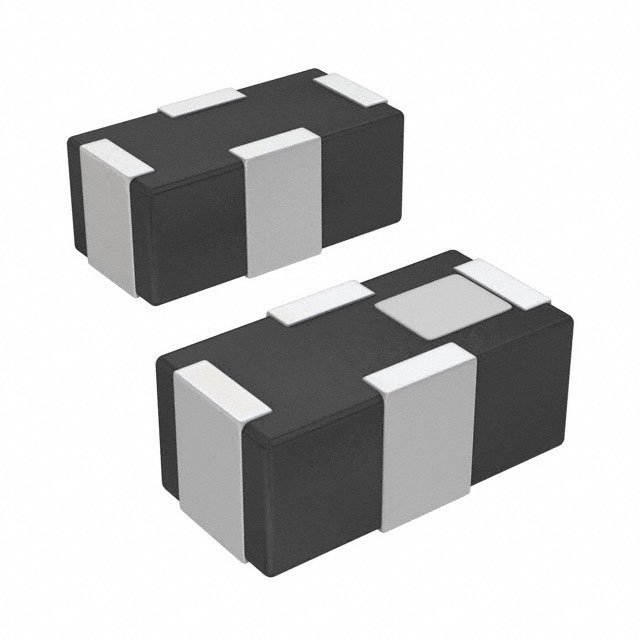

ATB2012E-50012M-T01
|
TDK Corporation | BALUN 400MHZ-1.8GHZ 50/100 0805 | 2000 | $0.26 | |
748421245
|
Wurth Electronics Inc. | BALUN 2.4GHZ-2.5GHZ 50/100 0805 | 10154 | $1.26 | |
HHM1711E1
|
TDK Corporation | BALUN 2.3GHZ-2.7GHZ 50/100 0603 | 4780 | $0.00 | |
DEA102500LT-9052A1
|
TDK Corporation | BALUN 2.3GHZ-2.5GHZ 0402 | 14554 | $0.00 | |
HHM1522A7
|
TDK Corporation | BALUN 824MHZ-894MHZ 50/50 0805 | 2000 | $0.20 |
